MILESIGHT

LoRaWAN Zone Leakage Detection Sensor

Ürün Kodu : EM300-ZLD-868M
Yorumlar
Paylaş:
Fiyat Alarmı
5.554,30 TL + KDV

uFeatures

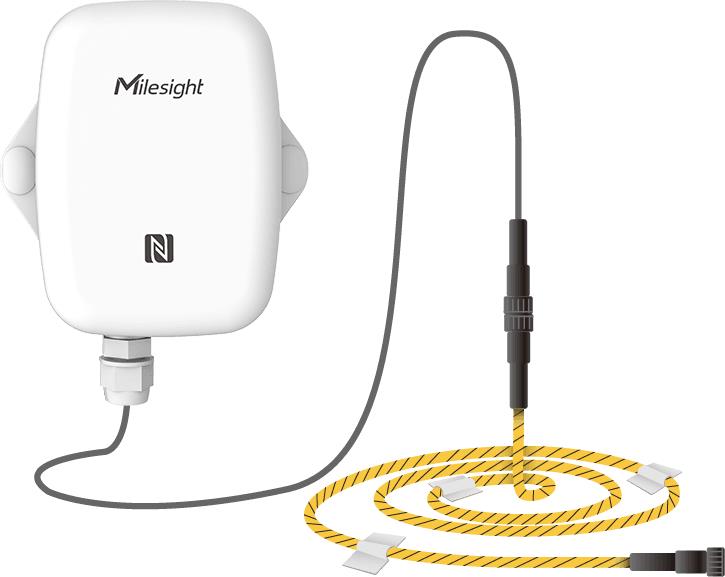

ØDetect the presence of liquids by a long cable and based on the conductive principle
ØEmbedded with temperature and humidity sensors for environment monitoring
ØUltra-wide-distance transmission up to line of sight of 10km
ØIP67 UV-resistant and waterproof enclosure for harsh environment applications
ØBuilt-in 4000 mAh replaceable battery and works for 5 years without replacement
ØEquipped with NFC for easily configuration
ØCompliant with standard LoRaWAN® gateways and network servers
ØQuick and easy management with Milesight IoT Cloud solution



uSpecifications

WirelessTransmission

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

TxPower

16dBm(868)/20dBm(915)/19dBm(470)

Sensitivity

-147dBm@300bps

Mode

OTAA/ABPClassA

Measurement

LeakageDetection

TriggerCondition

Whenliquidlevelreaches5mm

DetectionCable

3m(customizable)

Temperature

Range

-30°Cto+70°C

Accuracy

0°Cto+70°C(+/-0.3°C),-30°Cto0°C(+/-0.6°C)

Resolution

0.1°C

Humidity

Range

0%to100%RH

Accuracy

10%to90%RH(+/-3%),below10%andabove90%RH(+/-5%)

Resolution

0.5%RH

Operation

PowerOn&Off

NFC,power button(Internal)

Configuration

MobileAPP(via NFC)orPCsoftware(via USBType-C)

PhysicalCharacteristics

PowerSupply

1×4000 mAhER18505Li-SOCL2battery(extendableto 2batteries)

BatteryLife*

>5years(10minintervalandalarmonceeveryday,SF10)

OperatingTemperature

-30°Cto+70°C

RelativeHumidity

0%to100%(non-condensing)

IngressProtection

IP67

Dimension

105.6×85.3 ×27 mm(4.16 ×3.36 ×1.06 in)

Installation

WallMounting
