MILESIGHT

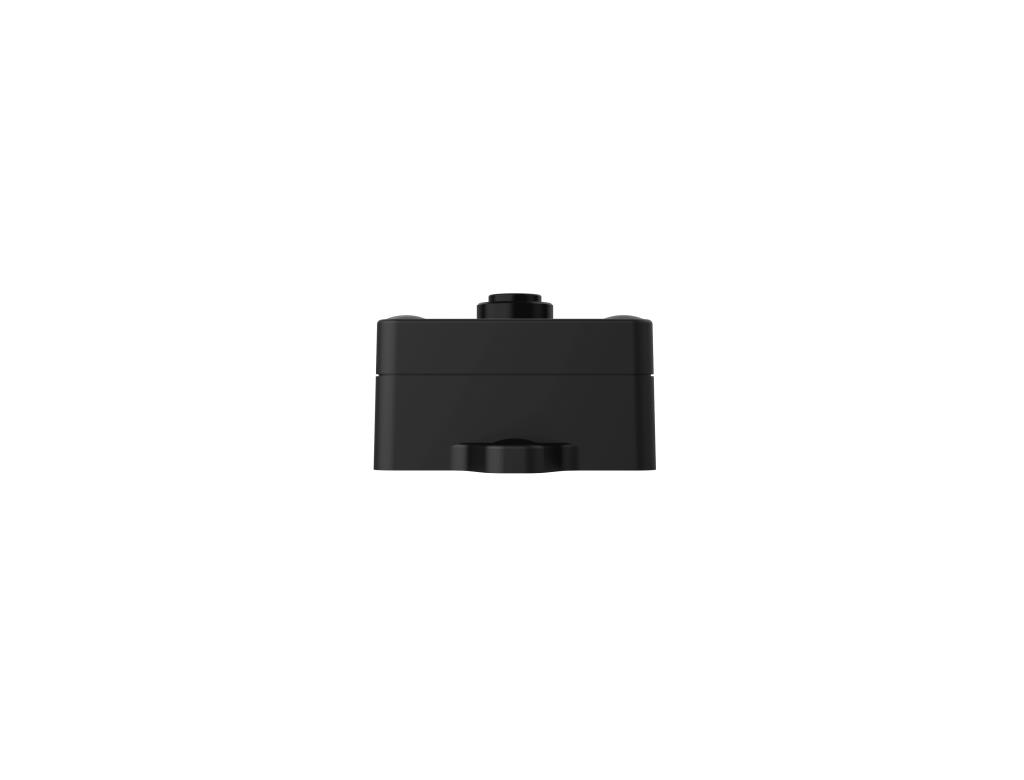

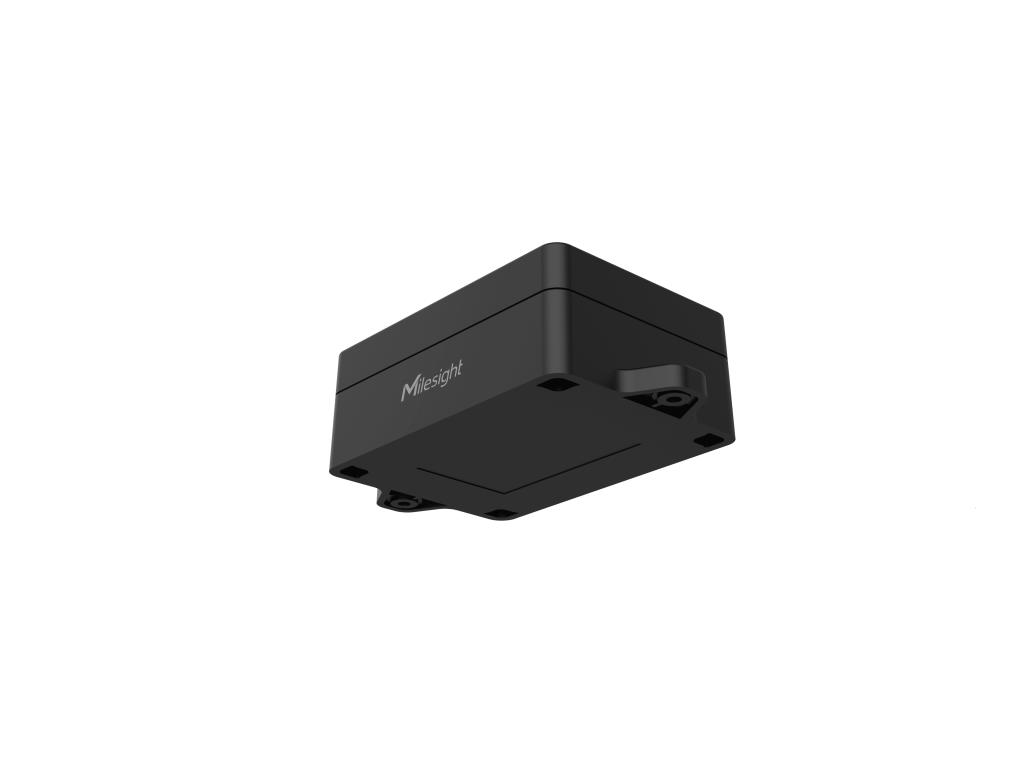

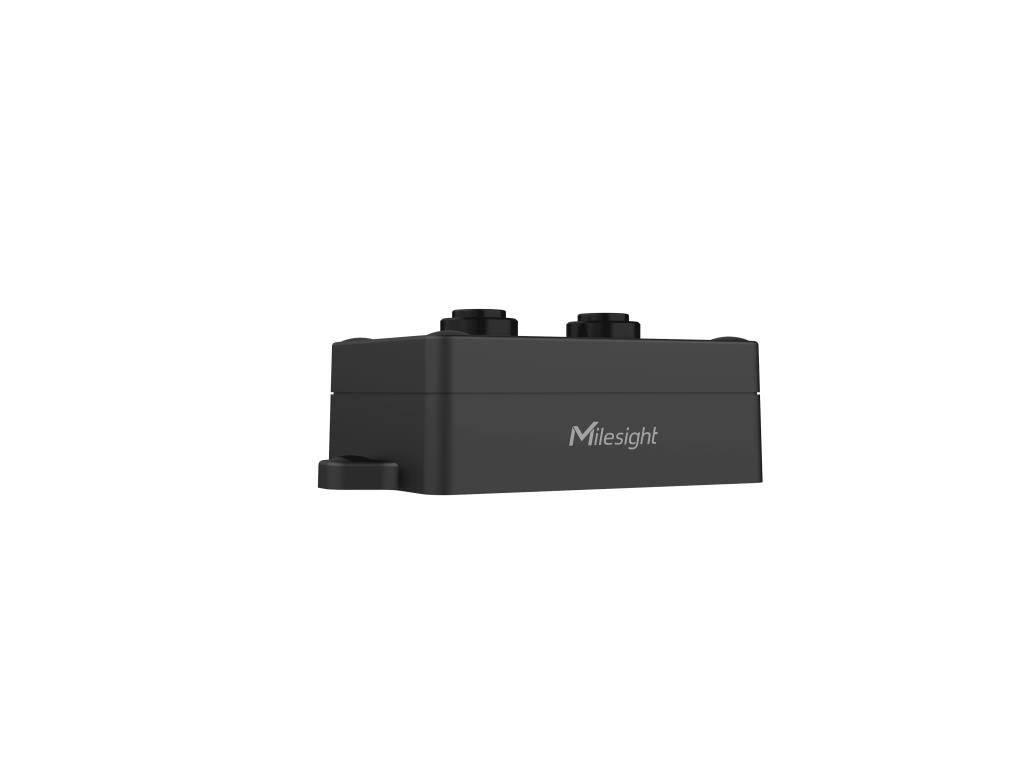

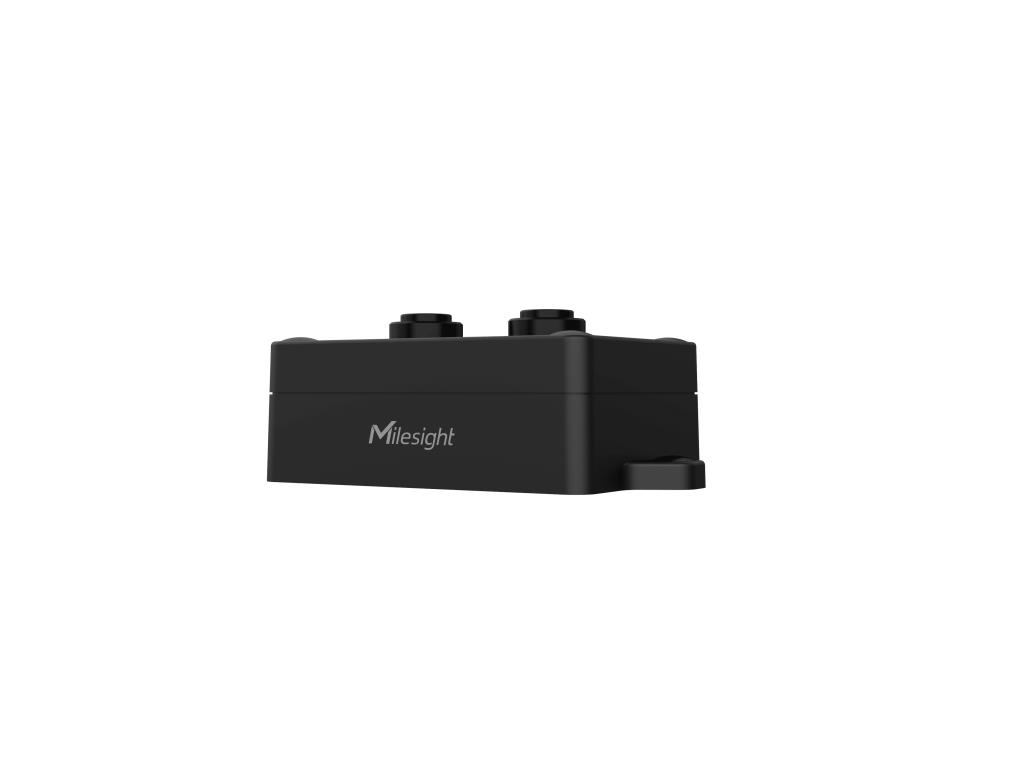

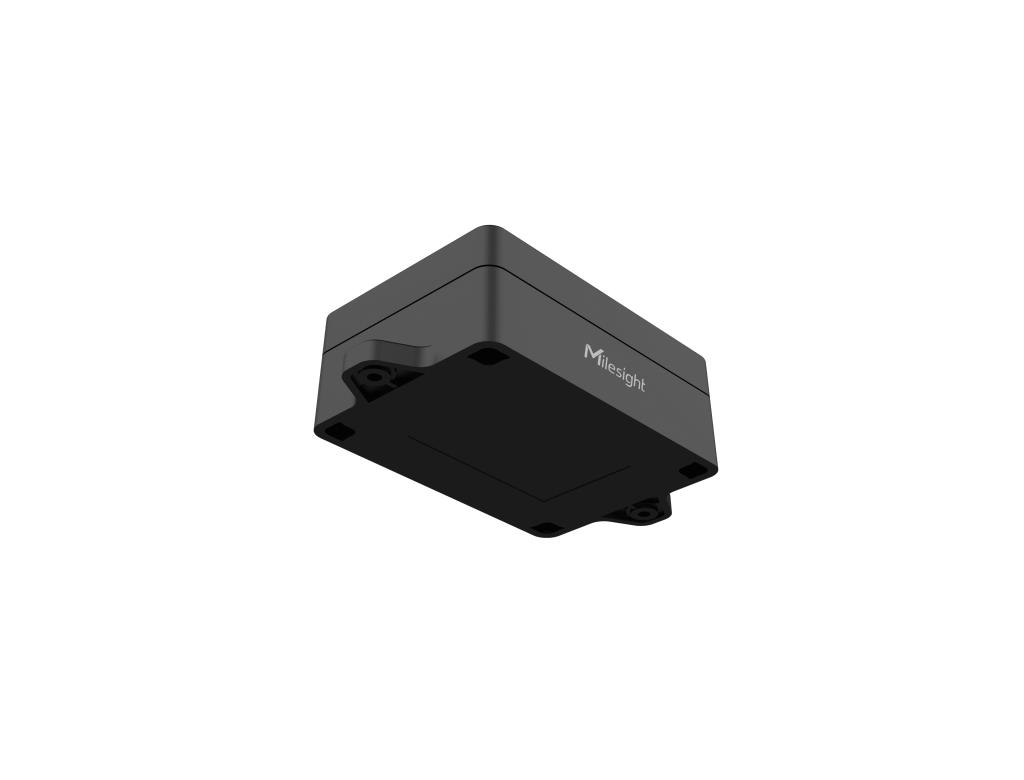

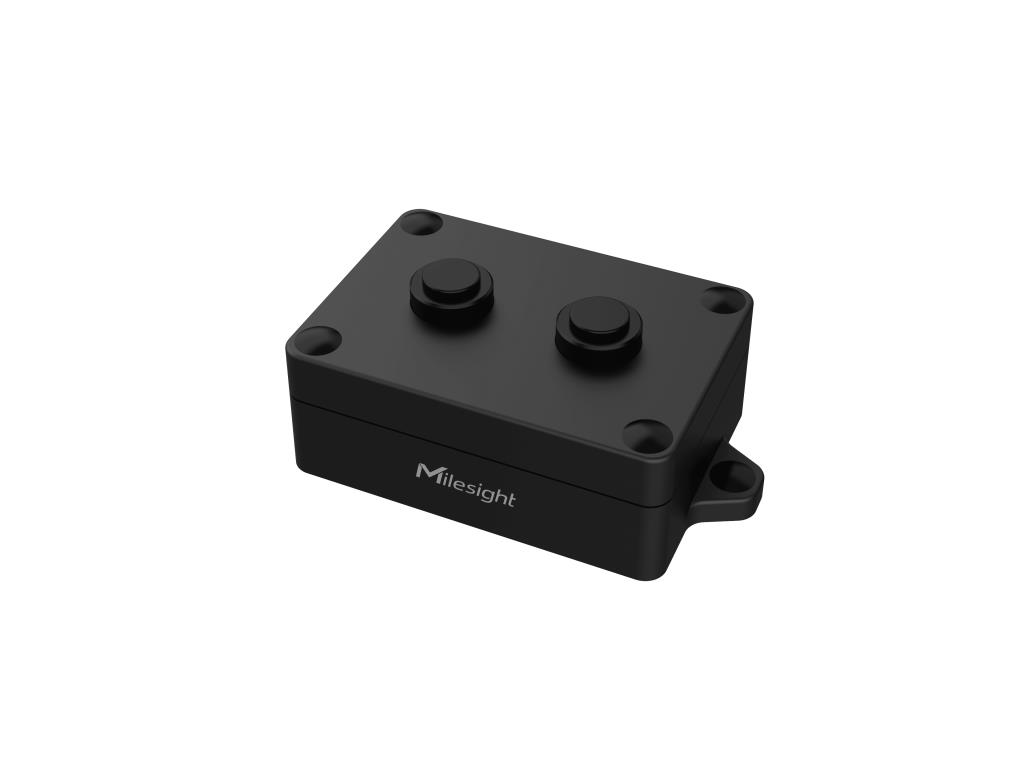

LoRaWAN®Ultrasonic Distance/Level Sensor

Ürün Kodu : EM310-UDL-868M
Yorumlar
Paylaş:
Fiyat Alarmı
7.574,04 TL + KDV

uFeatures
Ø3-450 cm wide measuring range with short blind zone
ØEasy to install, suitable for various types of waste bins or containers
ØBuilt-in 3-axis accelerometer sensor to monitor device tilt status
ØIP67 waterproof and salt pray resistant enclosure for outdoor applications and easy to clean
ØUltra-wide-distance wireless transmission up to line of sight of 15 km
ØEquipped with NFC for one touch configuration, support card emulation mode
ØFunction well with standard LoRaWAN® gateways and network servers
ØCompliant with Milesight IoT Cloud



uSpecifications

Wireless Transmission

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power

16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137 dBm @300bps

Mode

OTAA/ABP Class A

Measurement

Distance

Detection Range

3 - 450 cm

Detection Accuracy

± (1+0.3%*S) cm, S=distance

Distance Resolution

1 mm

Device Position

Status

Normal/Tilt

Operation

Configuration

NFC Configuration via Mobile App

Physical Characteristics

Power Supply

2 × 3500 mAh ER17505 Li-SOCl2 battery

Battery Life*

≥10 years (10 min interval + 20 triggers per day)

Operating Temperature

-15°C to +60°C

Relative Humidity

≤90% (non-condensing)

Ingress Protection

IP67

Dimension

111 × 62 × 40 mm (4.37 × 2.44 × 1.57 in)

Weight

168g

Material & Color

ABS, Black

Installation

On the flat surfaces with screws

* Tested under laboratory conditions and for guideline purposes only.
