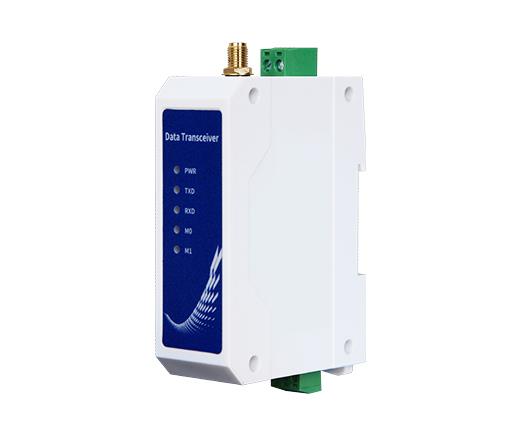

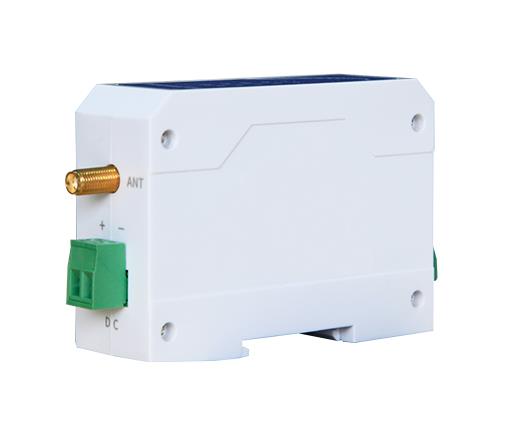

RF Terminal, 30dBm. 410~441MHz 8km. RS485
1.918,76
TL
+
KDV
Stok Durumu:
Yok
| Model | |||||
| Mode | Working | Transmit | Distance | Specifications | Recommended Application Scenarios |
| Frequency | Power | ||||
| Hz | dbm | km | |||
| E95-DTU(433L20-485) | 410/441M | 20 | 3 | Lora spread spectrum anti-interfernce | Suitable for small data volume and long-distance application environment |
| Parameter | |||||
| No. | Term | Specification | Description | ||
| 1 | Size | 92*67*30 mm | Review installation dimensions for details | ||
| 2 | Weight | 95g | Weight tolerance 5g | ||
| 3 | Working Temperature | -40℃~+85℃ | Meet the needs of industrial use | ||
| 4 | Antenna impedance | 50Ω | Standard 50Ω characteristic impedance | ||
| 5 | Voltage Range | 8~28V DC | Recommend to use 12V or 24V | ||
| 6 | Interface | RS485 | 3.81 terminal block | ||
| 7 | Baud Rate | Default 9600 | Baud rate range 1200~115200 | ||
| 8 | Address Code | Default 0 | A total of 65536 address codes can be set | ||
| Frequency range and channel number | |||||
| Model | Defaul | Frequenc | Channel | Number of Channels | |
| tFrequency | yRange | Spacing | |||
| Hz | Hz | Hz | |||
| E95-DTU(433L20-485) | 433M | 410~441M | 1M | 32,Half Duplex | |
| Current parameter | |||||
| Model | Transmitting Current mA | Waiting Current mA | |||
| 12V | 24V | 12V | 24V | ||
| E95-DTU(433L20-485) | 230 | 135 | 20 | 12 | |









| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000017775 |
| Tedarikçi Ürün Kodu | : | E95-DTU-433L20-485 |
Uyumlu Aksesuarlar
