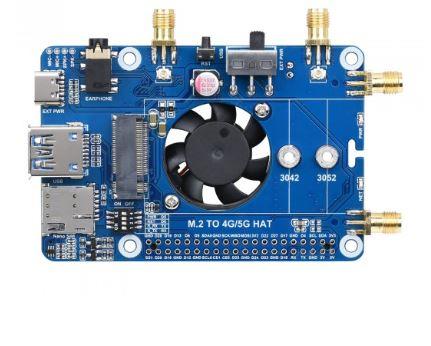

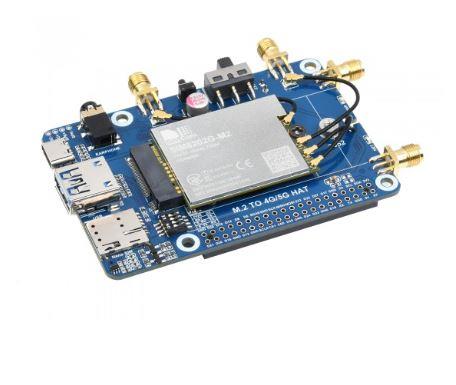

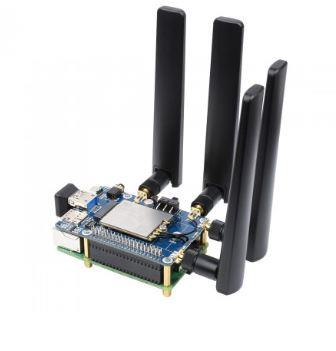

SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Qua - 1SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Qua - 2SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Qua - 3SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Qua - 4
WAVESHARE

SIM8202G-M2 5G HAT (B) for Raspberry Pi, 5G/4G/3G, Snapdragon X55, Qua

Ürün Kodu : LTE-WS21708
Yorumlar
Paylaş:
Fiyat Alarmı
23.999,66 TL + KDV
SIM8202G-M2 5G HAT (B) FOR RASPBERRY PI

Comes With SIM8202G-M2, Supports 5G/4G/3G, Supports 5G NSA And SA,
GNSS Positioning, Applicable For Regions With 5G Sub-6G Signal Coverage

Features At A Glance
  • Comes with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, supports 5G NSA and SA networking, supports multi-mode multi-band
  • Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
  • Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
  • 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
  • 2x SIM card slot, dual card single standby, switchable via AT command
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current
Module Specifications
 SIM8202G-M2
Frequency band
Sub-6G (SA)n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Sub-6G (NSA)n41, n77, n78, n79
LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48
WCDMAB1, B2, B3, B4, B5, B8
GNSSGPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G2.4 Gbps (DL)  /  500 Mbps (UL)
LTE1 Gbps (DL)  /  200 Mbps (UL)
HSPA+42 Mbps (DL)  /  5.76 Mbps (UL)
Software functions
Operating systemsWindows/Linux/Android
Communication protocolsTCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
SMSSupports MT, MO, CB, Text, PDU
Firmware upgradeSupports firmware upgrade via USB port
Applications
Applicable regionsRegions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examplesCPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

connecting with Raspberry Pi 4B



connecting with Raspberry Pi 3B+



connecting with CM4 IO Base

Cloud Communication

Supported Communication Protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...

Multi-Constellation Dual-Band GNSS

Supports GPS, Beidou, Glonass, Galileo, QZSS, And LBS Base Station Positioning

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

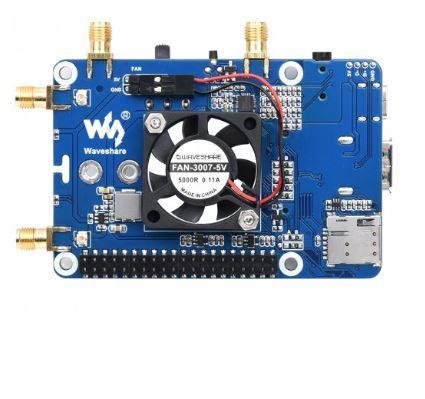

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 5G Module

Standard M.2 B KEY Slot

Compatible With SIM8202X-M2, SIM8200EA-M2, SIM8262X-M2 Series Modules

 SIM8200EA-M2SIM8202G-M2
Frequency band
Sub-6G (SA)n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2)
Sub-6G (NSA)n41, n77, n78, n79 (n79 is only available for SIM8202G-M2)
LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48
WCDMAB1, B2, B3, B4, B5, B8
GNSSGPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G2.4 Gbps (DL)  /  500 Mbps (UL)
LTE1 Gbps (DL)  /  200 Mbps (UL)
HSPA+42 Mbps (DL)  /  5.76 Mbps (UL)
Applications
Applicable regionsRegions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examplesCPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
Comes with SIM8202G-M2 module by default, for other modules or hardware customization, feel free to contract us.
Application Examples

5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.



5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities
Outline Dimensions
Resources & Services
Wiki: SIM8202G-M2_5G_HAT_(B)
