Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

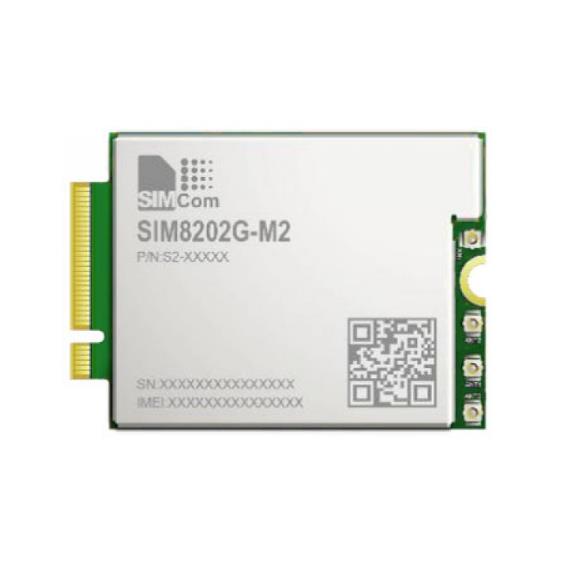

SIM8202X-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

SIM8202X-M2 SERIES

5G Module, Four Antennas Support

The SIM8202X-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

The SIM8202X-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Product Advantages

Standard M.2 interface.
High throughput data communication.
AT commands of the SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules

Specifications

PRODUCT	SIM8202G-M2
FREQUENCY BAND
Sub-6G (SA)	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Sub-6G (NSA)	n41, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B2, B3, B4, B5, B8
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
DATA RATE
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)
LTE	1 Gbps (DL) / 200 Mbps (UL)
HSPA	42 Mbps (DL) / 5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems	Windows/Linux/Android
Communication protocols	TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
HARDWARE INFO
SIM card	1.8V/3.0V
Antenna connector	4x IPEX-4 connector, for 3G/4G/5G/GNSS
Power supply	5V 3A
Form factor	M.2
Dimensions	42.0 × 30.0 × 2.3mm
Operating temperature	-30℃ ~ +70℃
APPLICATIONS
Applicable regions	China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
