Break Out Board inc LE50-868 Module
2.260,27
TL
+
KDV
Stok Durumu:
Yok

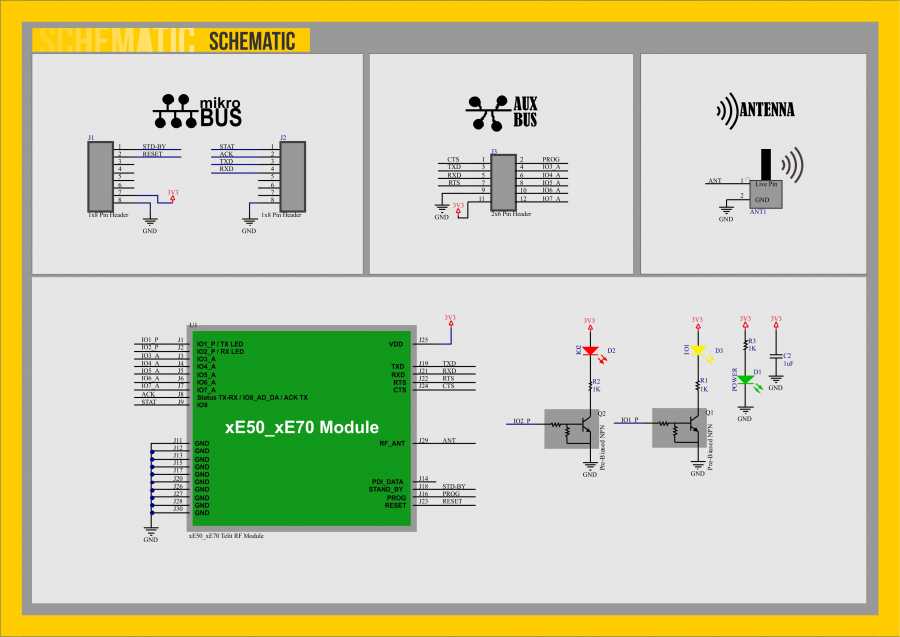

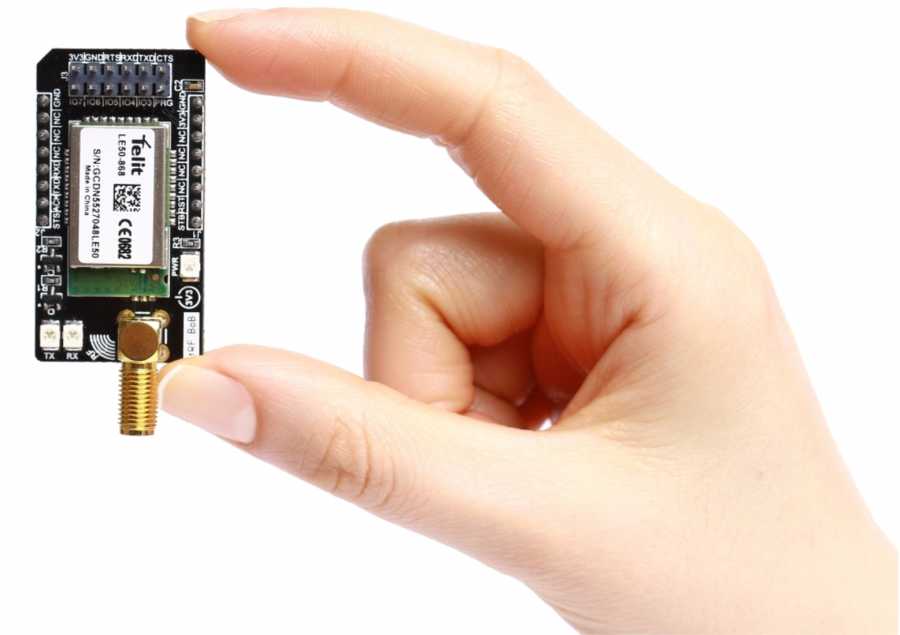

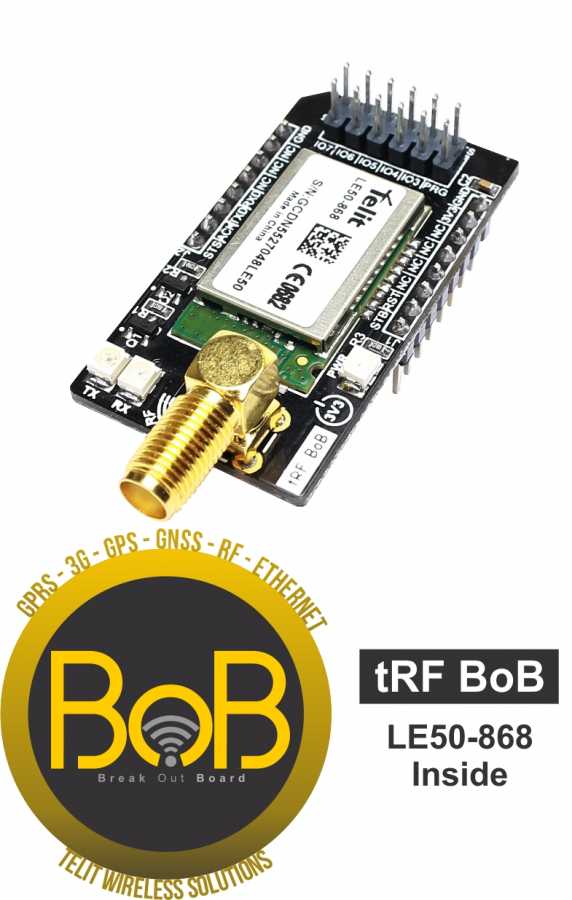

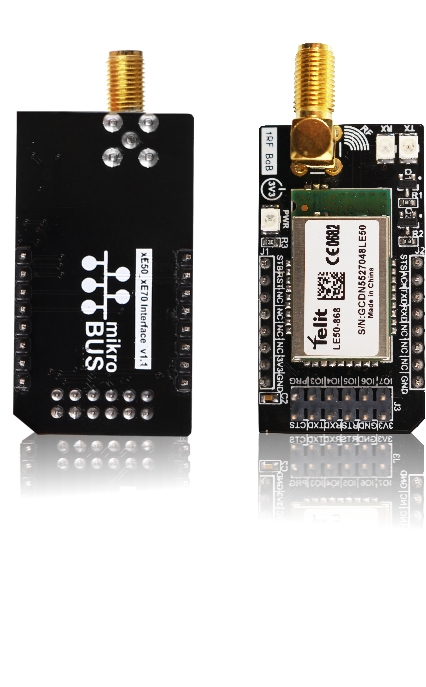

"tRF BoB 50" is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz RF communication to your design.It features the Telit LE50-868MHz transceiver module, a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. tBoB RF 50 communicates with the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines. It has a LED diode in order to power indicator.

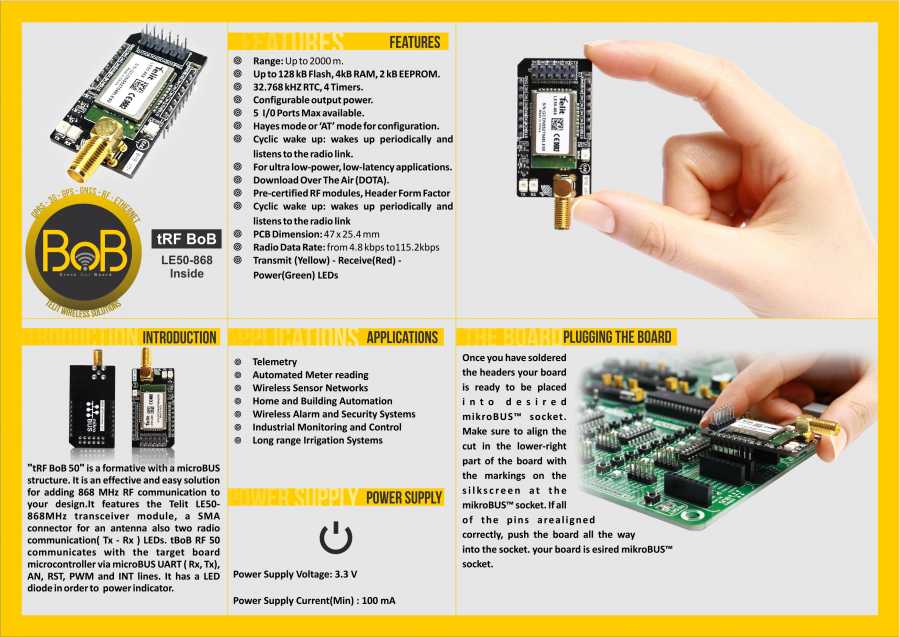

- Range: Up to 2000 m.
- Up to 128 kB Flash, 4kB RAM, 2 kB EEPROM.
- 32.768 kHZ RTC, 4 Timers
- Configurable output power.
- 5 I/0 Ports Max available.
- Hayes mode or ‘AT’ mode for configuration.
- Cyclic wake up: wakes up periodically and listens to the radio link.
- For ultra low-power, low-latency applications.
- Download Over The Air (DOTA).
- Pre-certified RF modules, Header Form Factor
- Cyclic wake up: wakes up periodically and listens to the radio link

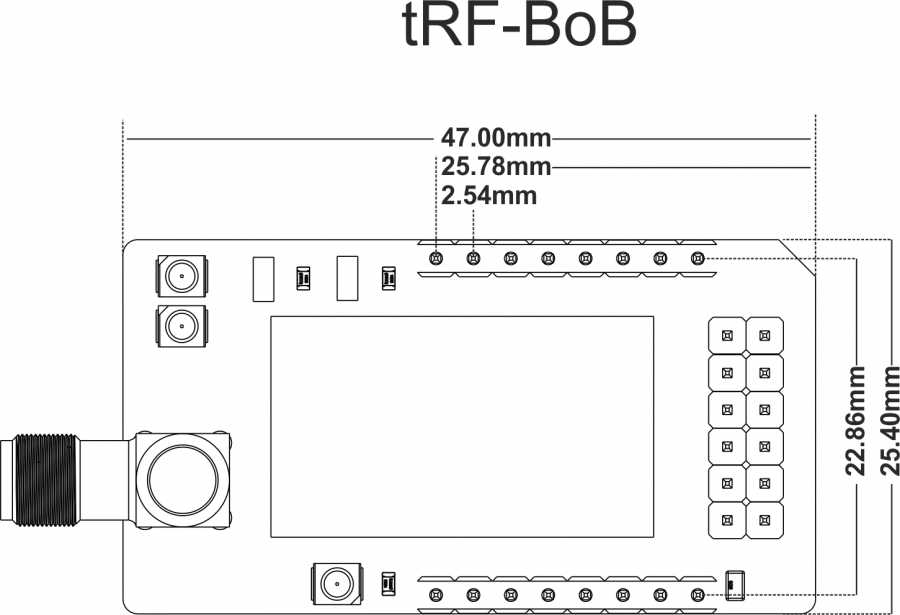

- PCB Dimension: 47 x 25.4 mm
- Radio Data Rate: from 4.8 kbps to115.2kbps
- Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | tRF_BoB LE50-868 |
