Break Out Board inc LE70-868 Module
2.561,64
TL
+
KDV
Stok Durumu:
Yok

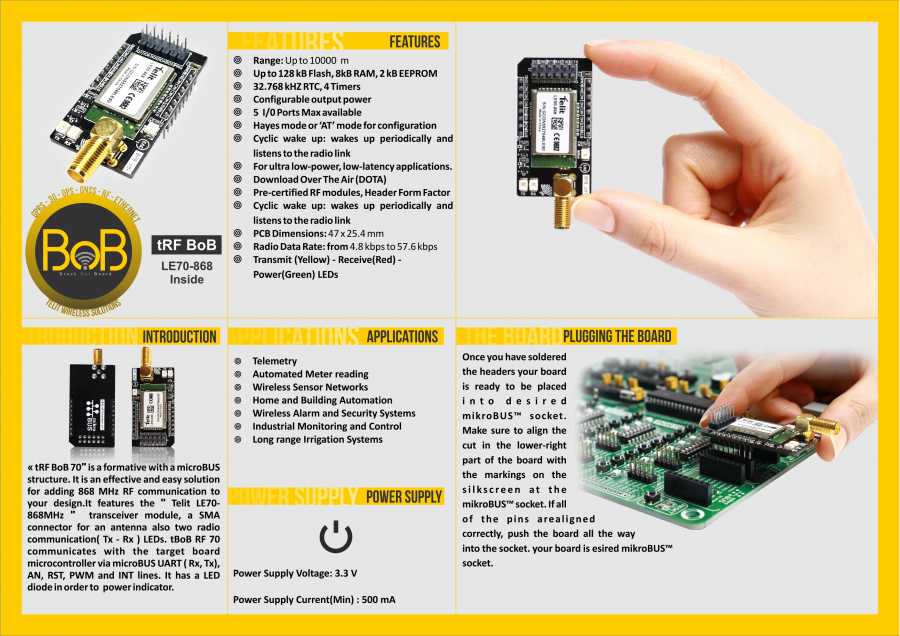

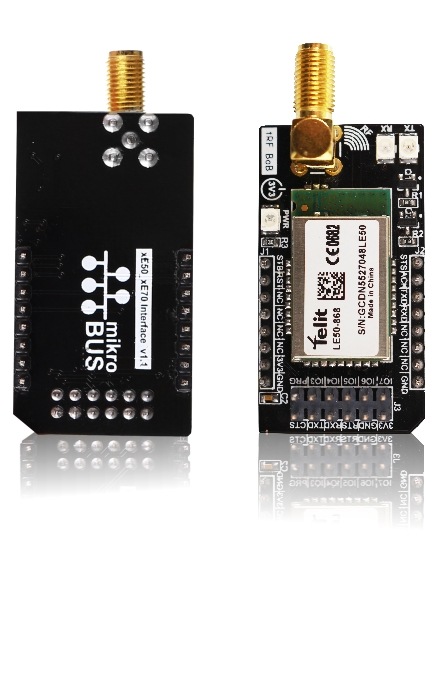

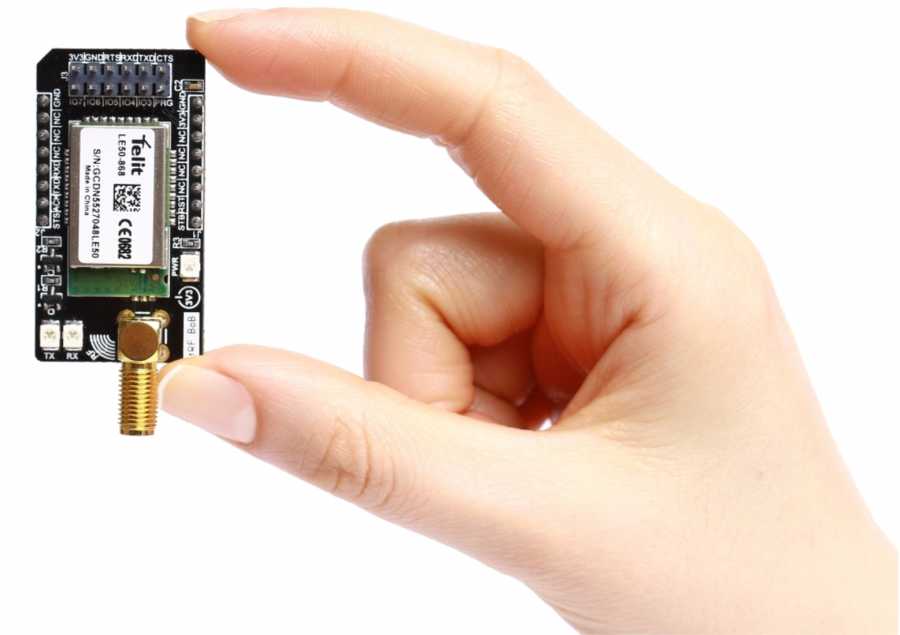

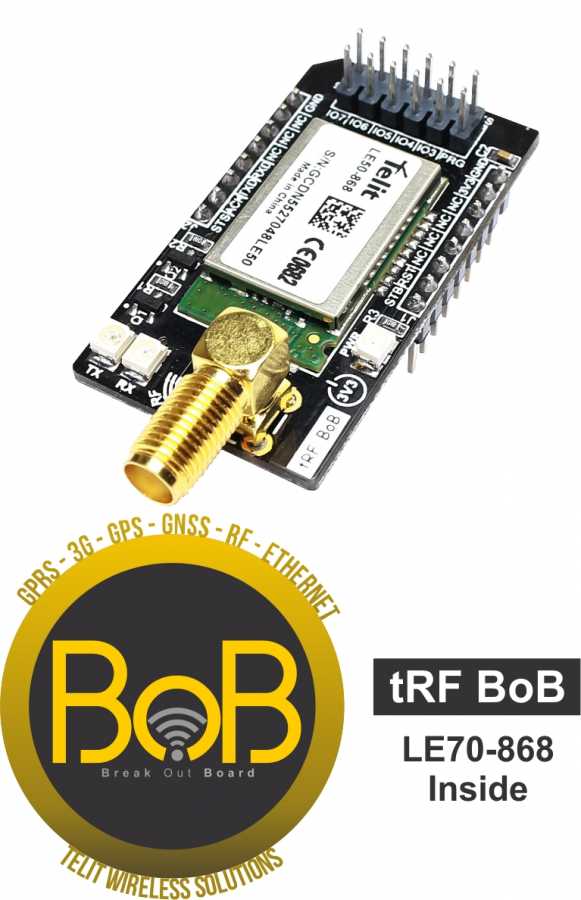

" tRF BoB 70 " is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz RF communication to your design.It features the " Telit LE70-868MHz " transceiver module, a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. tBoB RF 70 communicates with the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines. It has a LED diode in order to power indicator.
- Range: Up to 10.000 m
- Up to 128 kB Flash, 8kB RAM, 2 kB EEPROM
- 32.768 kHZ RTC, 4 Timers
- Configurable output power
- 5 I/0 Ports Max available
- Hayes mode or ‘AT’ mode for configuration
- Cyclic wake up: wakes up periodically and listens to the radio link
- For ultra low-power, low-latency applications.
- Download Over The Air (DOTA)
- Pre-certified RF modules, Header Form Factor
- Cyclic wake up: wakes up periodically and listens to the radio link

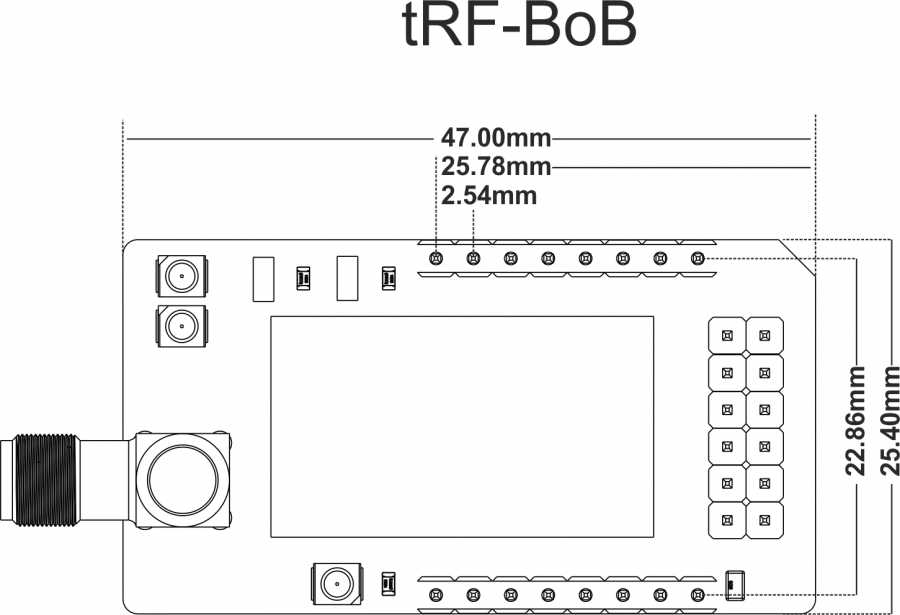

- PCB Dimensions: 47 x 25.4 mm
- Radio Data Rate: from 4.8 kbps to 57.6 kbps
- Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | tRF_BoB LE70-868 |
