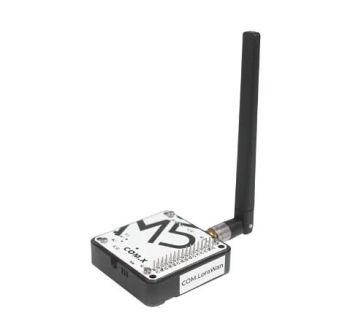

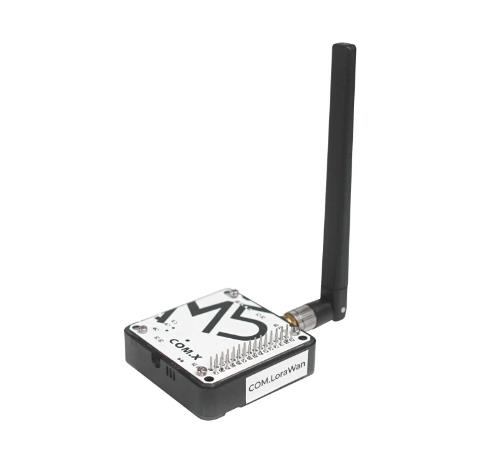

COM.LoRaWAN Module 868MHz (ASR6501) V2.0 withAntenna

Ürün Kodu : LTE-M031-C4
Yorumlar
Paylaş:
Fiyat Alarmı
2.524,68 TL + KDV
Alışveriş Listeme Ekle
PRODUCT DETAILS

Description

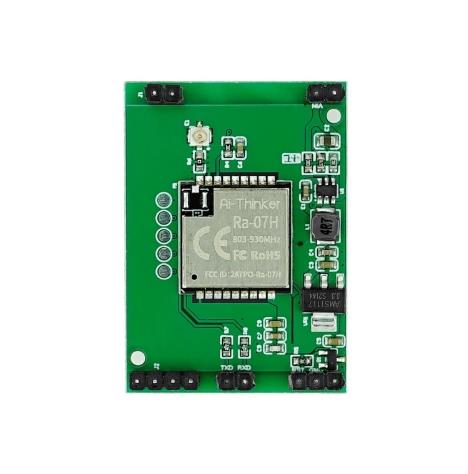

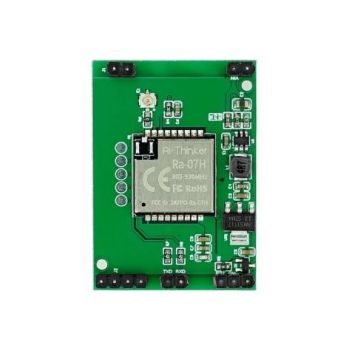

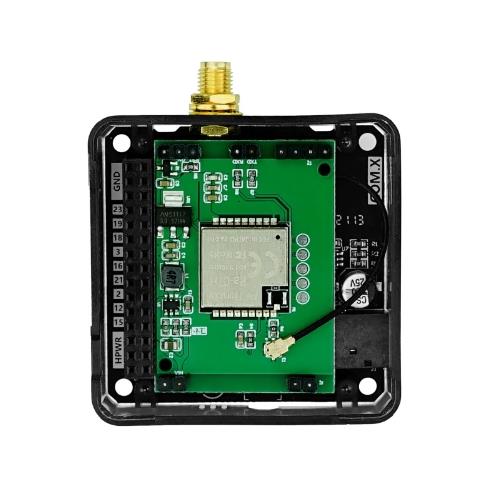

COM.LoRaWAN868 v2.0 is a LoRaWAN communication module suitable for 868MHz frequency launched by M5Stack. The module adopts the ASR6501 scheme, which supports long-distance communication and has high sensitivity characteristics. The module integrates the LoRaWAN protocol stack, adopts the serial communication interface (using AT command set for control), and can be used as a collection node for a large number of access gateways for data collection management. This module is suitable for long-distance low-power IoT communication applications, such as the deployment of environmental monitoring nodes.

Notice

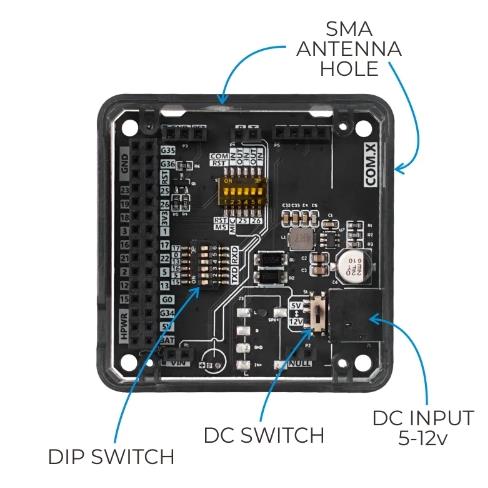

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

  • ASR6501
  • Operating frequency: 868MHz
  • SMA antenna
  • Communication interface: UART
  • Command protocol: AT command

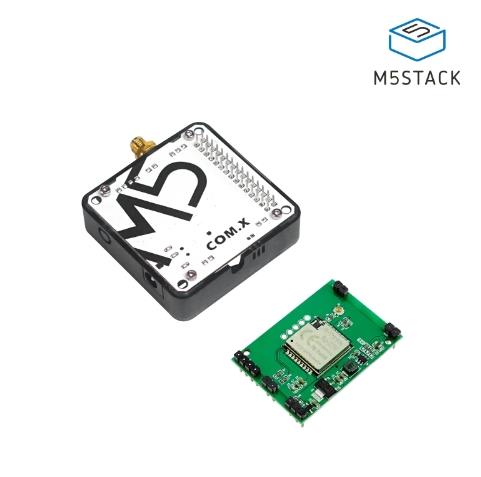

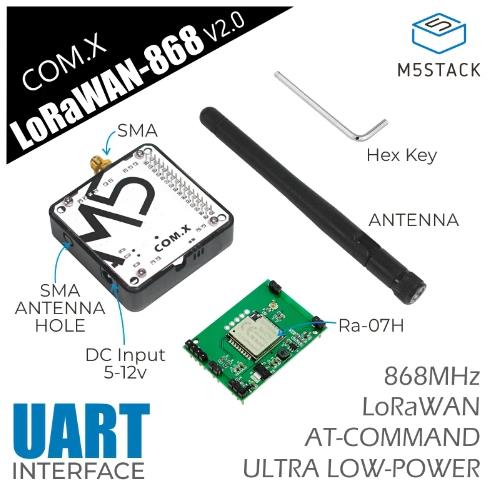

Includes

  • 1x COM.LoRaWAN868 v2.0
  • 1x SMA Antenna

Application

  • Automatic remote meter reading
  • Intelligent traffic intelligent parking lot
  • Remote irrigation and environmental monitoring

Specifications

ResourcesParameter
Communication chipASR6501
Operating frequency868MHz
LoRaWAN Versionv1.0.1
Minimum receiving sensitivity-137dBm (SF=12/BW=125KHz)
Maximum transmit power+21dBm
communicationUART 115200bps
Net weight27.4g
Gross weight70.4g
Product Size54.2*54.2*13.2mm
Package Size165*60*36mm
