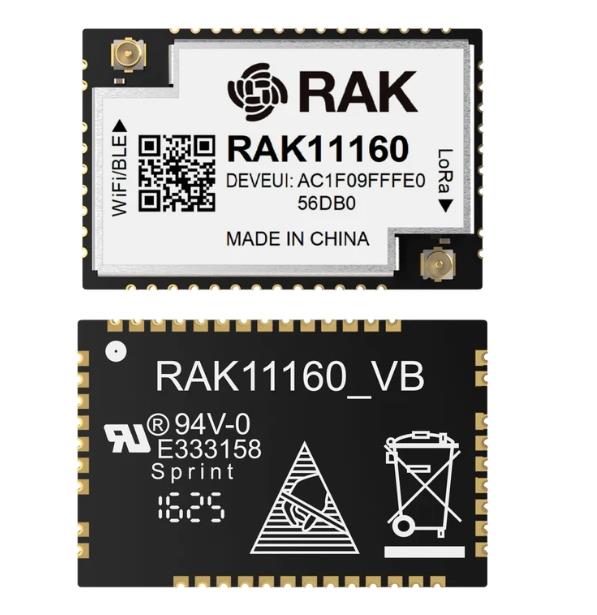

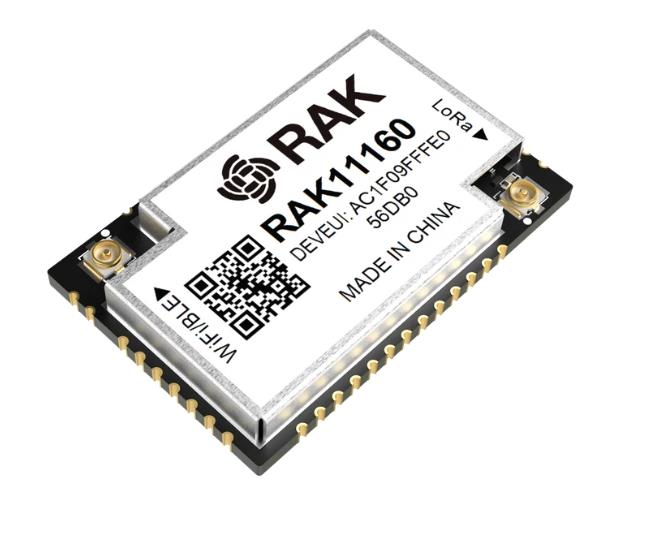

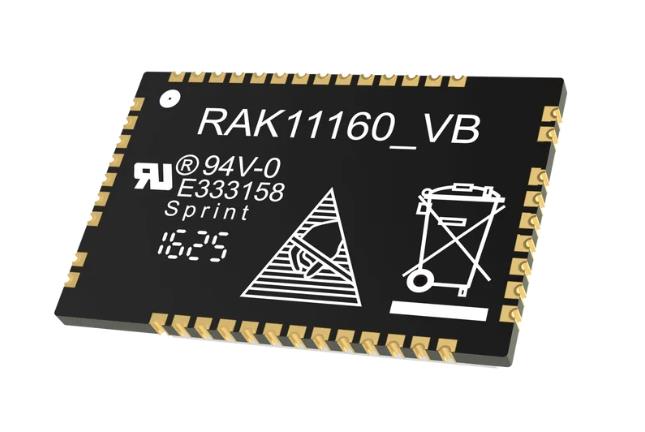

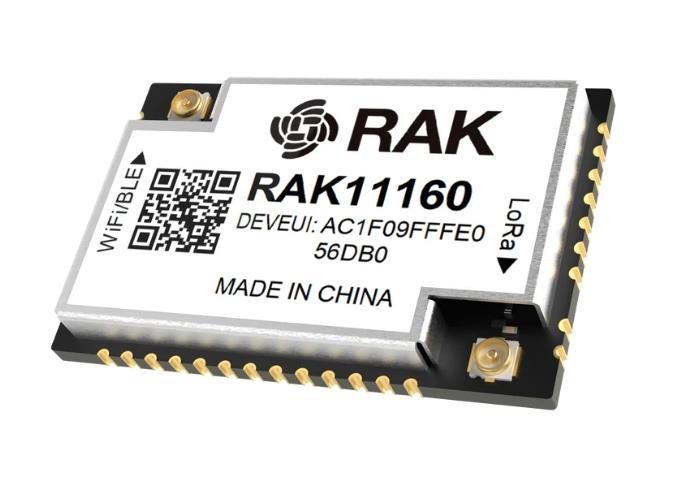

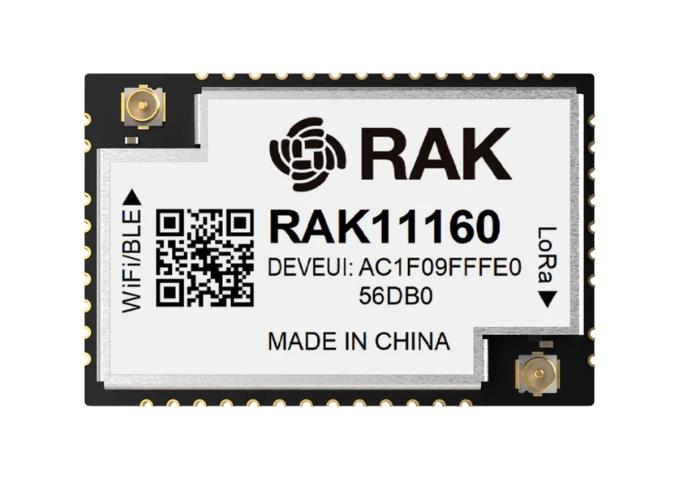

RAK11160 Lorawan STM32WLE5 ,ESP32 868MHz with IPEX (105231)

What Is RAK11160 ESP32 + STM32WL Module?

RAK11160 is a dual-core, low-power module for LoRaWAN that combines the STM32WLE5 LoRa controller with an ESP32-C2 chip for WiFi and BLE connectivity. This unique architecture is designed for IoT applications requiring long-range wireless communication and occasional high-bandwidth tasks like MQTT forwarding or OTA updates.

The RAK11160 supports two development modes:

1. Standalone: Program STM32WL using RAK’s RUI3 SDK for sensor reading and LoRaWAN operation.
2. Dual-mode: Use STM32WL module for LoRaWAN, and wake ESP32 when WiFi/MQTT/BLE functions are needed. Data flow and logic can be managed with custom firmware.


For better frequency stability over the temperature range, the STM32WLE is using a TCXO for the clock generation.

Note: MHF connectors are generally interoperable with IPEX-style connectors in most practical deployments, allowing cross-use in numerous designs.

Why You Need RAK11160 ESP32 + STM32WL Module

Build smarter, longer-lasting IoT devices with the RAK11160. Thanks to its ultra-low power control and dual wireless technologies, it's perfect for applications like battery-powered sensors, remote data logging, and asset tracking where energy efficiency and flexibility are critical.

Why it's useful:

1. Save battery life – ESP32 fully powers down when not needed
2. Connect anywhere easily – LoRaWAN, WiFi, BLE, and P2P all in one module
3. Store data safely – Built-in memory ensures no loss during offline periods
4. Simplify your IoT design – Compact size fits into almost any project

Note:
