PRODUCT DESCRIPTION

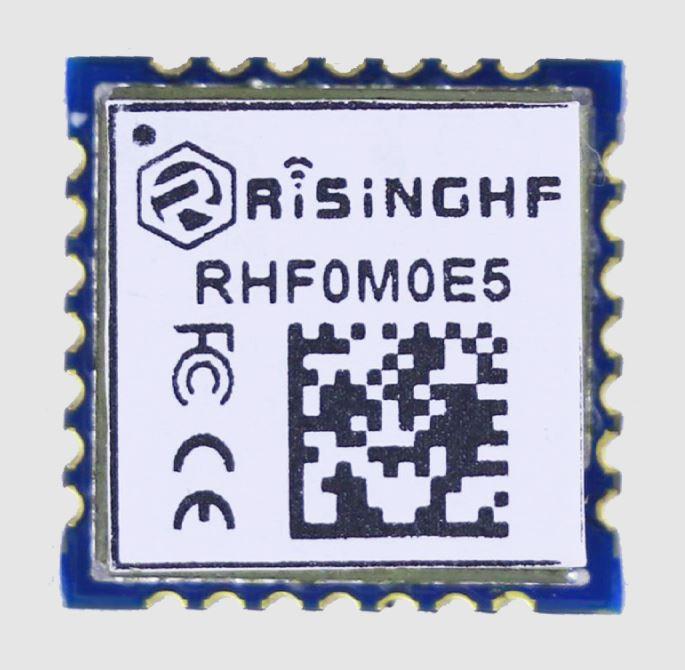

RHF0M0E5 is a low-cost, ultra-low power, ultra-small LoRaWAN module designed by Ruixing Hengfang Network (Shenzhen) Co., Ltd. The module adopts ST system level package chip STM32WLE5JC,intergrated high-performance LoRa SX126X IP and ultra-low power consumption MCU. The module is embedded with LoRaWAN protocol and AT instruction, which supports global LoRaWAN frequency planning, relay function, FUOTA transmission of large-size file upgrade application, multicast communication function based on ClassB/C, and rich communication peripherals such as UART, SPI, IIC, etc.The module's target applications are wireless sensor networks and other IoT devices, especially where battery power requires low power and long distances.
[RHF-PB019180]RHF0M0E5 Product BriefV1.4Part Number MCU TX Power(dBm) AT Modem RHF0M0E5-LF22 ROM 256KB / RAM 64KB 10@LF(434MHz)
22@LF (470MHz)
Yes RHF0M0E5-HF22 ROM 256KB / RAM 64KB 22@HF (868/915MHz) Yes
