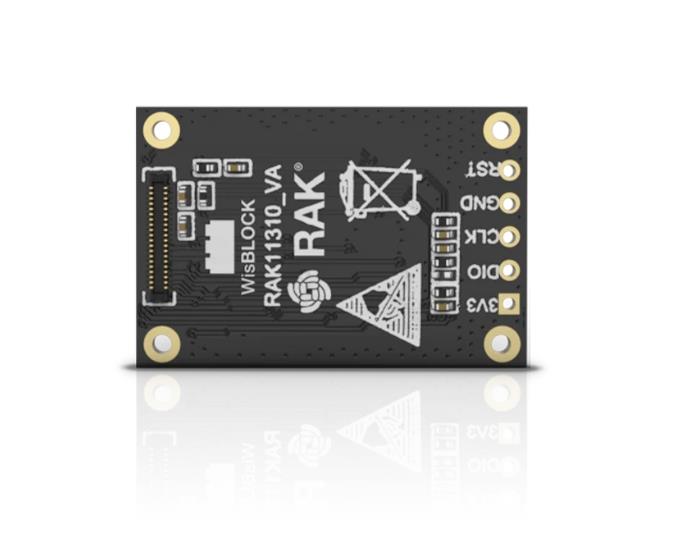

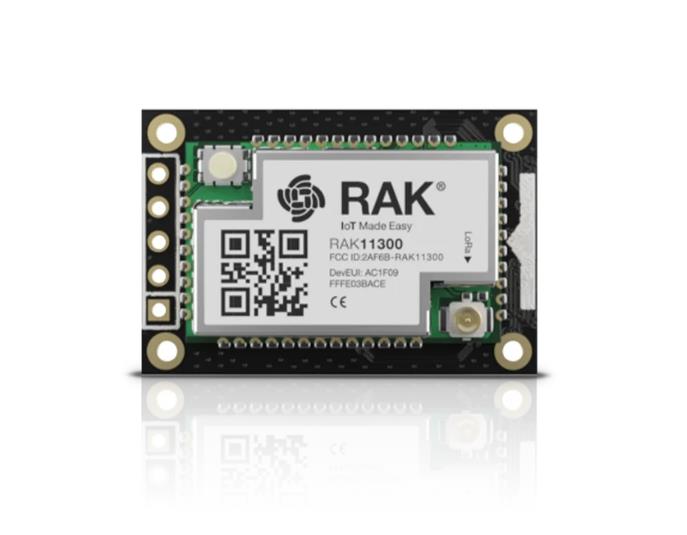

RAK11310 Rasp.Pi RP2040 Core Module LoRa&LoRaWAN SX1262 (115004)

Product Description

The RAK11310 module is based on the Raspberry Pi RP2040 MCU chip and part of the WisBlock Core series. And of course, we added the SX1262 LoRa transceiver chip to open the world of LoRa and LoRaWAN connectivity to this module. Even though this module has no WiFi on board, you can easily add it with the WisBlock Communication module RAK2305. Using the same small module size as our other WisBlock Core modules you can use it on the WisBlock Base board and attach up to 4 WisBlock Sensor modules and 1 WisBlock IO module.

Product Features

• LoRaWAN 1.0.2 protocol stack (supports Class A & C)

• Raspberry Pi RP2040

• Dual M0+ Core
• 133MHz CPU Clock
• 246 kB RAM
• 30 multifunction GPIO
• SX1262 LoRa transceiver

• Low power high range
• LoRa® transceiver
• Worldwide frequency coverage

Package Inclusion

• 1 pcs RAK11310

• 1 pcs Antenna for LoRa

Documentation

• RAK11310 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• Arduino IDE BSP
• PlatformIO BSP
• Bootloader source code and ready to flash file(opens new window)
• RAK11310 3D Model(opens new window)
• 40-Pin Male Connector 3D File
