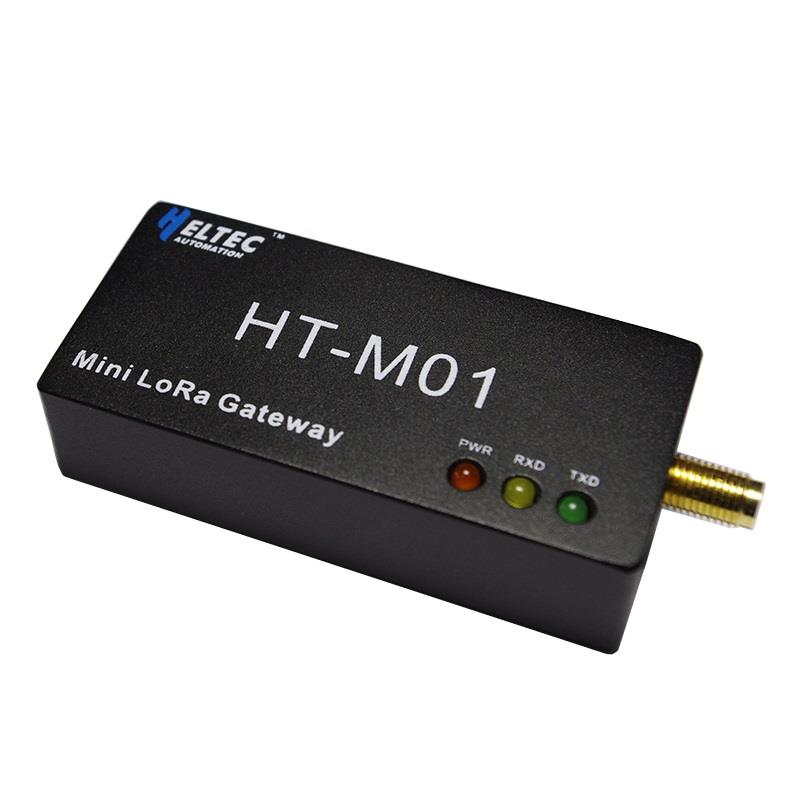

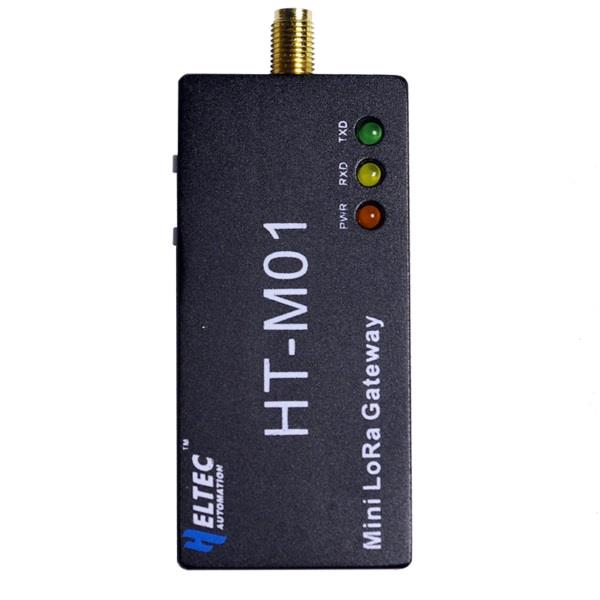

HT-M01 Mini LoRa Gateway, SX1308, 20dBm

Ürün Kodu : HT-M01
Yorumlar
Paylaş:
Fiyat Alarmı
7.826,51 TL + KDV

HT-M01 Mini LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

  • CE Certificate
  • SX1308 digital baseband chip

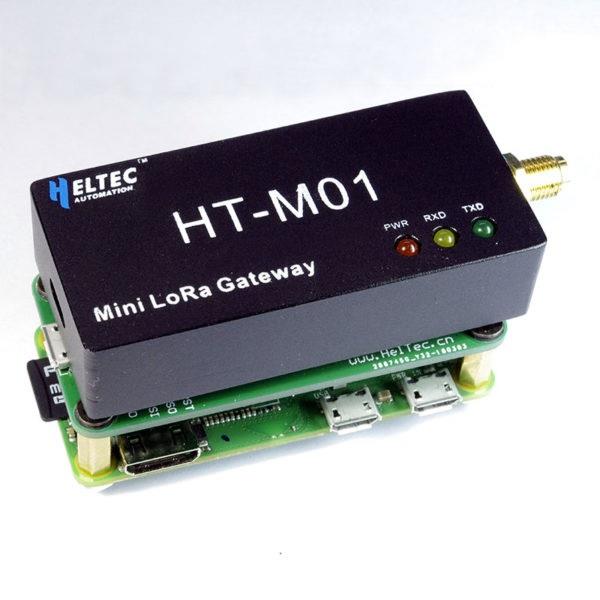

  • Size: 66(+10) x 30 x 15mm (can assemble with raspberry pi ZERO via a special converter board)
  • Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
  • 10 programmable parallel demodulation paths
  • Dynamic data-rate adaptation (ADR)
  • Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
  • Maximum output: 20 ± 1dBm
  • Up to -139dBm sensitivity with SX1257 or SX1255 Tx/Rx front-end

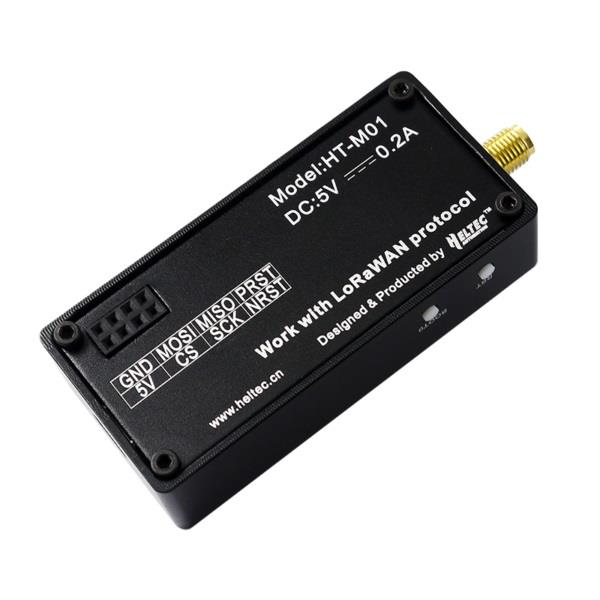

  • Communication interface SPI or USB
  • The power supply voltage:5V
  • Support for LoRaWAN Class A, Class B, Class C protocols
  • Through the unique heat conduction device to transfer heat to the aluminum housing, strengthen heat dissipation, make the operation more stable
  • -20°C to 70°C maximum operating temperature range
  • Frequency range:
    • Europe – 868MHz ISM band (863MHz to 870MHz range)
    • Europe – 433MHz ISM band
    • USA/Australia – 915MHz ISM band (902MHz to 928MHz range)
    • China – 470MHz ISM band (470MHz to 510MHz range)

Technical Parameters


Electrical characteristics
