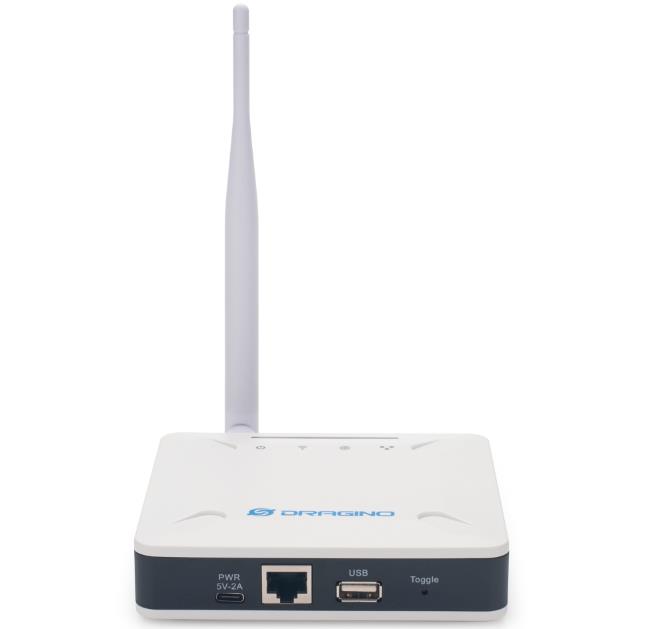

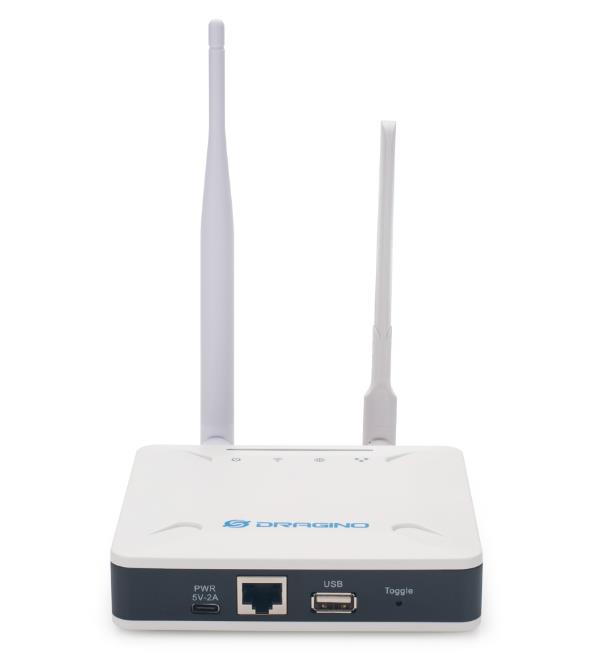

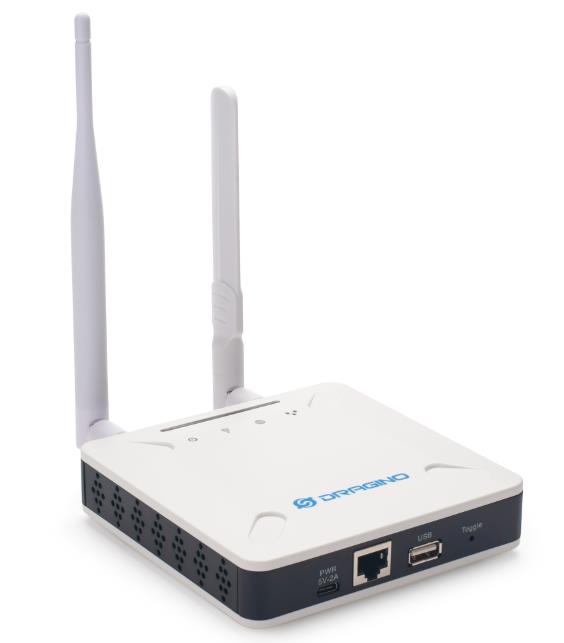

LPS8v2 Indoor LoRaWAN Gateway

Ürün Kodu : LPS8v2
Yorumlar
Paylaş:
Fiyat Alarmı
14.138,21 TL + KDV

The LPS8v2 is an open-source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.

The LPS8v2 is fully compatible with LoRaWAN protocol. It supports different kinds of LoRaWAN Network Connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms in the market.

LPS8v2 also includes a built-in LoRaWAN Server and IoT server, which provide the possibility for the system integrator to deploy the IoT service without cloud service or 3rd servers.

Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network.

LPS8v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.



Features:

  • Open Source Debian system
  • Managed by Web GUI, SSH via WAN or WiFi
  • Remote Management
  • Auto-provisioning for batch deployment and management
  • LoRaWAN Gateway
  • 10 programmable parallel demodulation paths
  • Pre-configured to support different LoRaWAN regional settings.
  • Allow customizing LoRaWAN regional parameters.
  • Different kinds of LoRaWAN Connections such as:
    • Semtech UDP Packet Forwarder
    • LoRaWAN Basic Station
    • ChirpStack-Gateway-Bridge (MQTT)
  • Built-in The Things Network local LoRaWAN server.
  • Built-in  Node-Red local Application server .

    Applications:

    • Smart Buildings & Home Automation
    • Logistics and Supply Chain Management
    • Smart Metering
    • Smart Agriculture
    • Smart Cities
    • Smart Factory

    Specifications:

    Hardware System:

    • CPU: Quad-core Cortex-A7 1.2Ghz
    • RAM: 512MB
    • eMMC: 4GB

    Interface:

    • 10M/100M RJ45 Ports x 1
    • Multi-Channel LoRaWAN Wireless
    • WiFi 802.11 b/g/n

    Operating Condition:

    • Work Temperature: -20 ~ 65°C
    • Storage Temperature: -20 ~ 65°C
    • Power Input: 5V, 2A, DC

    Dimensions and Weight:

    Device:

    • Size:120 x 120 x 30 mm/pcs
    • Weight: 187g

    Package:

    • Size:145 x 135 x 60 mm/pcs
    • Weight: 300g

    LPS8v2-XXX-YYY

    XXX: Frequency Band

    • AS923: LoRaWAN AS923 band
    • AU915: LoRaWAN AU915 band
    • EU868: LoRaWAN EU868 band
    • KR920: LoRaWAN KR920 band
    • US915: LoRaWAN US915 band
    • IN865: LoRaWAN IN865 band



    YYY: For Cellular/4G option

    • E:    EMEA, Korea, Thailand, India.
    • A:    North America/ Rogers/AT&T/T-Mobile.
    • AU: Latin America, New Zeland, Taiwan
    • J:     Japan, DOCOMO/SoftBank/ KDDI

    More info about valid bands, please see EC25-E product page.
