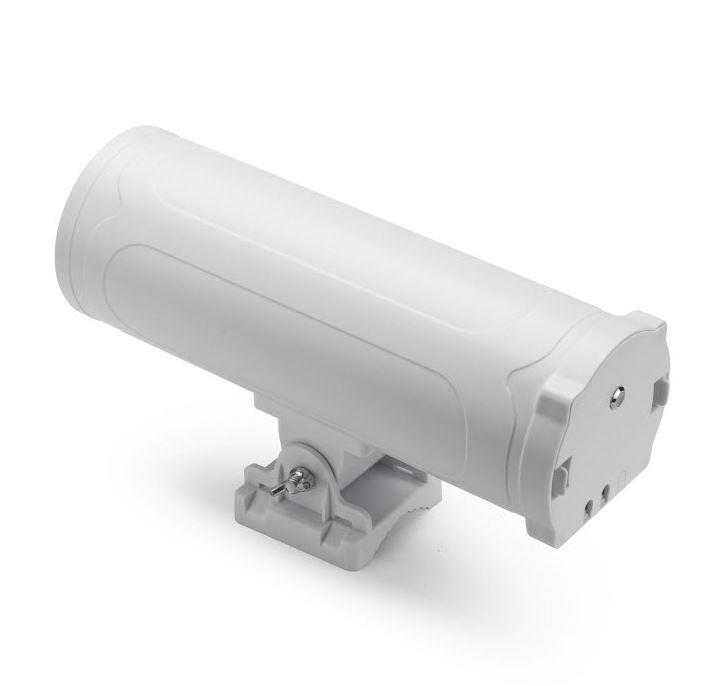

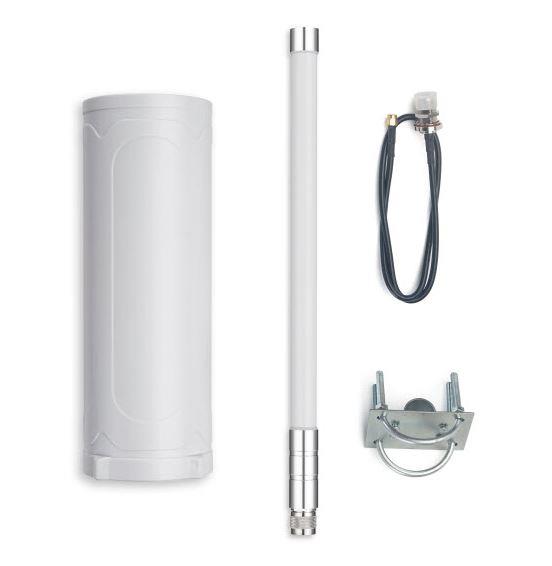

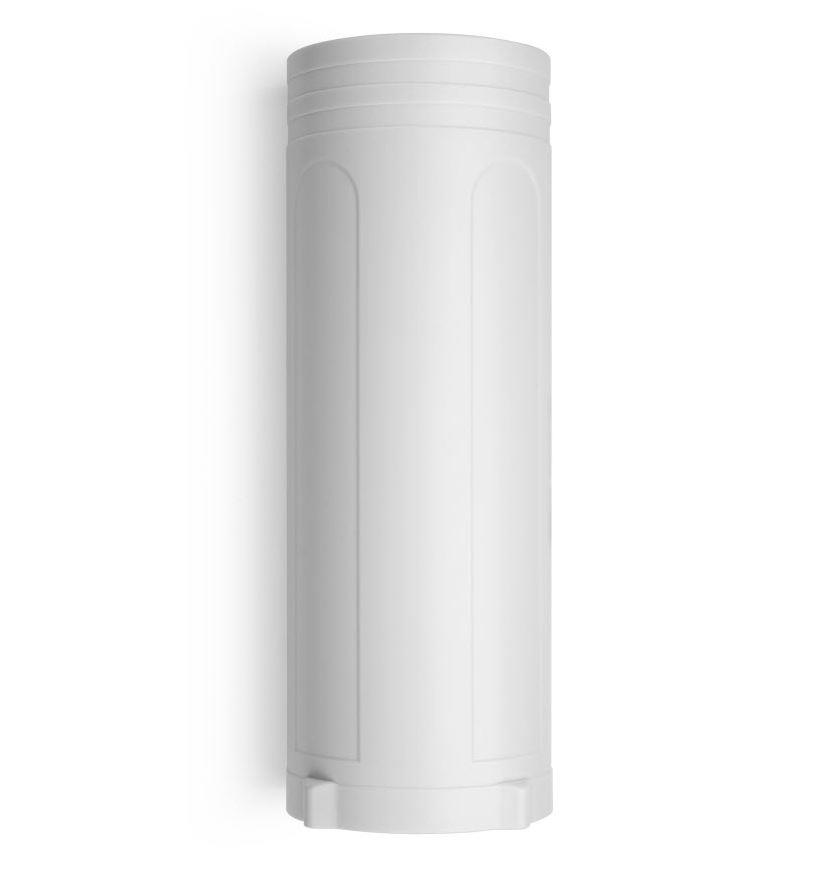

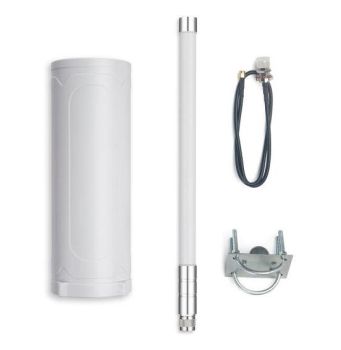

The DLOS8 is an open source outdoor LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.
The DLOS8 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRaWAN concentrator, which provide 10 programmable parallel demodulation paths.
DLOS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRaWAN network.
DLOS8 can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.
Dimensions and Weight:
Device:
- Size:pcs
- Weight:
Package:
- Size: 490*120*190mm
- Weight: 1.7 KG
- Volume Weight: 2.5kg
Specifications:
LoRa Spec:
- 1 x SX1301 + 2 x 1257 LoRa Tranceiver
General Specification:
- 10M/100M RJ45 Ports x 1
- 1 x 2.4G WiFi (802.11 bgn)
- 1 x USB host port
- Power by 12v DC or PoE
DLOS8-XXX-YYY
XXX: Frequency Band
- 868: For Bands: EU868,IN865
- 915: For Bands: US915,AU915,AS923,KR920
YYY: Cellular Option
- N/A: none 4G version
- EC25: 4G version
