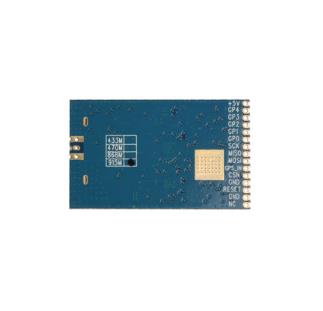

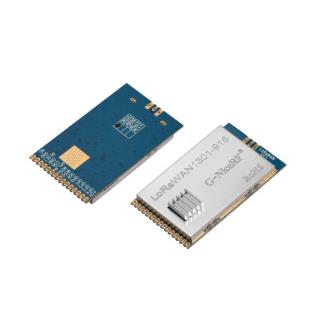

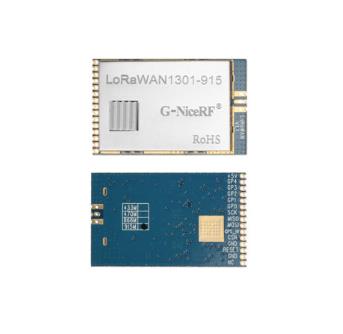

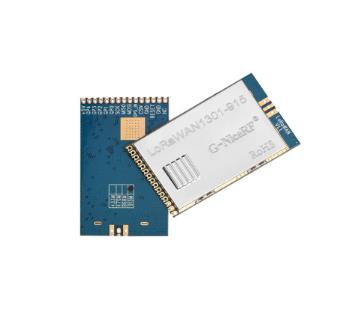

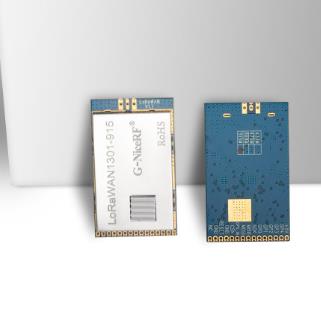

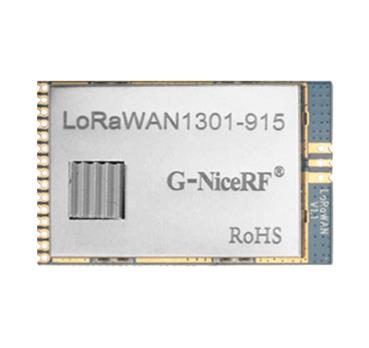

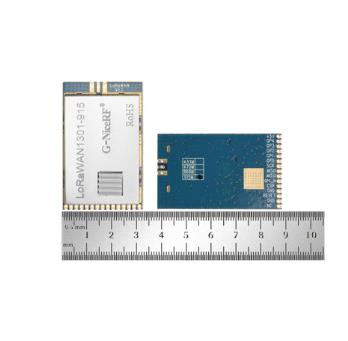

SX1301 LoRaWan Gateway Module SPI, 868 MHz
11.108,59
TL
+
KDV
Stok Durumu:
Yok
- LoRaWan1301 is a front-end SX1301 LoRaWan gateway module launched by NiceRF. Its small size and SPI interface are the main characteristics. The module adopts SX1301, SX1255 / SX1257 chip scheme and is designed based on Semtech official standard. Built in TCXO crystal oscillator supports various frequency bands of 433 / 470 / 868 / 915MHz, and other specific frequencies can also be customized.
- LoRaWan Gateway module LoRaWan1301 are strictly produced and tested by lead-free process, which comply with RoHS and REACH standards.
Features of SX1301 LoRaWan Gateway Module LoRaWan1301
| Interface | SPI |
| Chip | SX1301 |
| Frequency | 433MHz,470MHz,868MHz,915MHz |
| Output Power | 250mW |
- LoRa long range module technology
- Half-duplex
- Simultaneously receive LoRa packets
- Dual digital Tx & Rx radio front-end
- Dynamic data-rate adaptation (ADR)
- Multi LoRa Spreading Factor
- Maximum 10 channels
- 8 x Multi SF LoRa channels (SF7 to SF12 with125kHz Bandwidth)
- 1x LoRa channel (Bandwidth 125/250/500kHz)
- 1 x FSK channel
| Parameter | Min | Typ. | Max | Unit | Condition | |
| Working Condition | ||||||
| Working voltage range | 2.9 | 5.0 | 5.5 | V | ||
| Temperature voltage | -40 | 85 | ℃ | |||
| Current Consumption | ||||||
| Receiving current | <340 | mA | @9 channels all open | |||
| Transmitting current | <480 | mA | @24dBm | |||
| Sleep current | <35 | mA | ||||
| Parameter | ||||||
| Frequency range | 429 | 433 | 440 | MHz | @433MHz | |
| 470 | 480 | 490 | MHz | @470MHz | ||
| 860.75 | 868.3 | 874.5 | MHz | @868MHz | ||
| 902 | 915 | 928 | MHz | @915MHz | ||
| Output power | 0 | 24 | dBm | |||
| Receiving sensitivity | -133 | dBm | @SF=10,,BW=125kHz | |||
