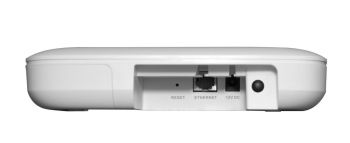

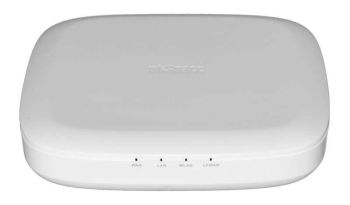

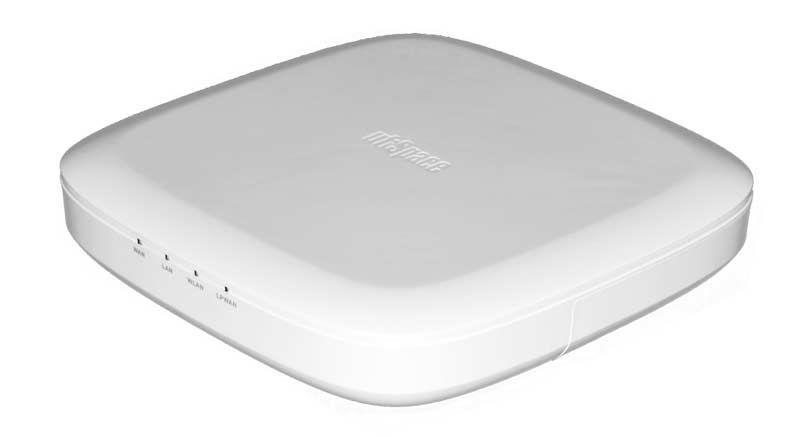

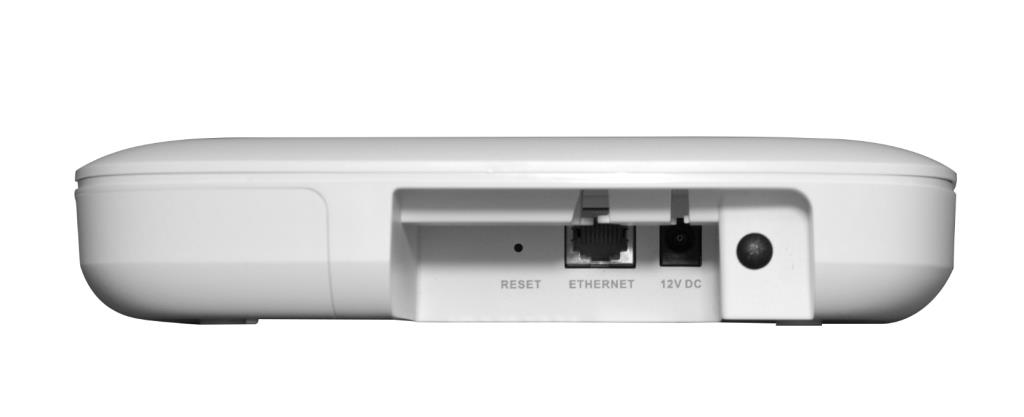

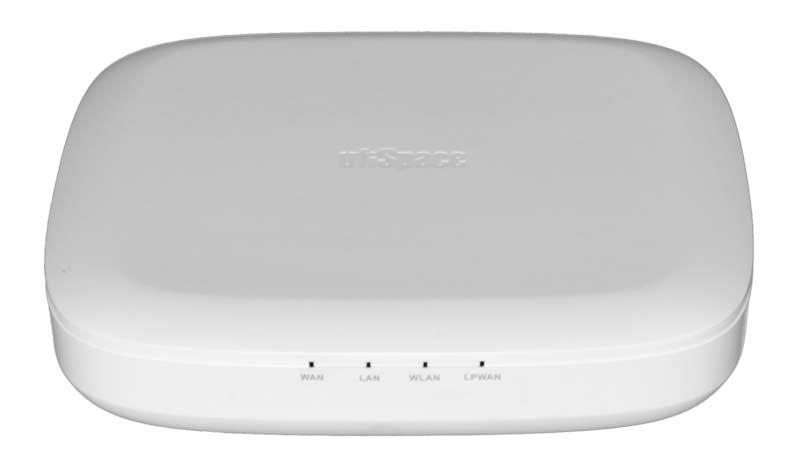

UFISPACE PICO CELL, 868 MHz V1.5 INDOOR LORAWAN GATEWAY

Ürün Kodu : GEE810E-868
Yorumlar
Paylaş:
Fiyat Alarmı
17.672,76 TL + KDV

Key features highlights :

Ufispace Enterprise Gateway : A ThingPark Ready Indoor Gateway to create your LoRaWAN network in no time

This Picocell gateway is the perfect solution for Home Area Network or when local coverage is needed. The V1.5 LoRaWAN gateway provides :

  •  an intuitive Web and application interface for an easy installation.
  • Flexible backhaul options - Ethernet, Wi-Fi, LTE (Optional) with failover mechanisms for higher resilience.
  • IPSEC support to ensure backhaul communication security.
  • RF Channel Scanning & Listen before talk capabilities

It is shipped with ThingPark LRR preinstalled to ensure you will get started in no time whatever your ThingPark environment : ThingPark Enterprise SaaS or OCP, ThingPark Community, ThingPark Partner Portal, ....

ThingPark Connected devices have been extensively tested through LoRaWAN use cases and application integration to confirm interoperability in networks powered by Actility’s network server and management software. cleardot

Description :

HW Specificiations

Processor: Cortex A8

Storage/Memory: 8GB eMMC/ 4Gb DDR3

WiFi: IEEE 802.11 b/g/n 2.4 GHz with internal type antenna

Ethernet10/100/1000 Mbps/ RJ45 with POE

USB Interface: USB 2.0 for 2G/3G/4G dongle

LTE Backhaul support: Yes, via optional USB dongle

DC PWRDC 12V@ 2.065A & PoE (802.3 AT compliant) @ RJ45

LoRaWAN Specificiations

Semtech Ref Design v1.5

# of LoRa Channels: 8

ISM Bands: EU868, US915, JP, AS923

Device Class Support: Class A, Class C

TDOA Support: No

LoRaWAN Antenna: 1.4dBi Internal antenna





Ürün Filtreleri
Barkod:8690000016921
Tedarikçi Ürün Kodu:GEE810E-868
