The A7602E-H-PCIEA is a LTE CAT4 module which supports wireless communication modes of LTE-TDD/LTEFDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

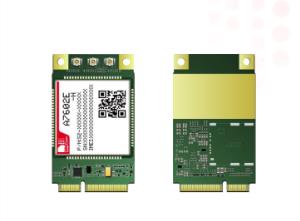

The A7602E-H-PCIEA adopts mini PCIE form factor and consists of a A7602E-H module and a mini PCIE adapter board. It is easy for customers to integrate
The A7602E-H-PCIEA supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) And software function, AT commands are compatible with SIM7600 series modules. Meanwhile the A7602E-HPCIEA integrates main industrial standard interfaces, withpowerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOTapplications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Key Benefits
u Mini-PCIE interface with strong compatibility.
u Suitable for LTE, UMTS and GSM networks.
u Support Analog Audio.
u Abundant software functions: FOTA, LBS, SSL.
u AT commands of the A7602E-H-PCIEA are compatible with the SIM7600 Series modules.
General Features
Frequency Bands: TDD-LTE B38/B40/B41 FDD-LTE B1/B3/B5/B7/B8/B20 UMTS/HSPA+ B1/B8 GSM/GPRS/EDGE 900/1800 MHz
Supply Voltag:e 3.0V ~ 3.6V, Typ: 3.3V
Control Via AT Commands
Operation temperature: -40℃ ~ +85℃
Dimensions: 50.8*31*5.35mm
Weight: TBD
Data Transfer
LTE CAT4 Uplink up to 50Mbps, Downlink up to150Mbps
HSPA+ Uplink up to 5.76Mbps Downlink up to 42 Mbps
UMTS Uplink/Downlink up to 384Kbps
EDGE Class Uplink/Downlink up to 236.8Kbps
GPRS Uplink/Downlink up to 85.6Kbps
Other Features
USB Driver for Microsoft Windows 7/8/10
USB Driver for Linux /
Android RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
Firmware update via USB/FOTA
TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS /DNS
RNDIS/PPP/ECM
SMS
SSL
Interfaces
USB2.0
UART
(U)SIM card(1.8V/3V )
Mic/Receiver
I2C
GPIO
Antenna: Primary/Diversity/GNSS*
Certifications
CE#
RoHS# /REACH#
Note *: optional # : on going
