A7672E-FASE, LTE CAT1 with GNSS/BT module - 1
SIMCOM

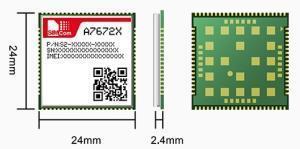

A7672E-FASE, LTE CAT1 with GNSS/BT module

Ürün Kodu : A7672E-FASE / S2-109ZS-Z33ET
Yorumlar
Paylaş:
Fiyat Alarmı
983,67 TL + KDV
Alışveriş Listeme Ekle

A7672E is the LTE Cat 1 with GNSS module that supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE. It  supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

A7672E adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

A7672E supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672E also supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.



Product Advantages

- Compact size with abundant interfaces

- Supports BLE and GNSS functions*

- Abundant software functions: FOTA, LBS, SSL

- Form factor is compatible with the SIM7000/SIM7070 series





ProductA7672E
Form FactorLCC+LGA
Dimensions(mm)24.0*24.0*2.4
Frequency BandsLTE-FDDB1/B3/B5#/B7/B8/
B20/B28#
LTE-TDDNA
GSMGSM/GPRS/EDGE
900/1800 MHz
Temperature-40℃ ~ +85℃
Electrical Features
Supply Voltage(V) 3.4~ 4.2
Power Consumption(mA)LTE1.5@LTE
Data Transfer
LTE(Mbps)10(DL)/5(UL)
EDGE(Kbps)236.8(DL/UL)
GPRS(Kbps)85.6(DL/UL)
Software Features
ProtocolTCP/IP/IPV4/IPV6/
Multi-PDP/FTP/ FTPS
/HTTP/HTTPS/DNS/MQTT
TLS●
Jamming Detection●
TTSO
File System●
WIFISCANO
BLE 5.0O
FOTA●
Android RILAndroid 5.0/6.0/7.0/8.0/9.0
USB DriverMicrosoft Windows 7/8/10
Linux/Android
WWAN (RNDIS)●
ECM●
Embedded ATO
Firmware UpgradeUSB/FOTA
Interfaces
SIM Card1.8V/3.0V
UART●
USB●
ADC●
Analog audio●
PCMO
GPIO●
I2C●
GNSSO
LCD●
Camera●
Certification
CertificationRoHS/REACH/CE-RED/
RCM/UKCA*/NCC/
GCF/Deutsche Telekom/BT

Ürün Filtreleri
Barkod:8690000032662
Tedarikçi Ürün Kodu:A7672E-FASE / S2-109ZS-Z33ET
