A7672E, LTE CAT1 +2G without B5 - 1
SIMCOM

A7672E, LTE CAT1 +2G without B5

Ürün Kodu : A7672E-(LASA-R)/ S2-10F87-Z332
Yorumlar
Paylaş:
Fiyat Alarmı
847,47 TL + KDV
Alışveriş Listeme Ekle

Based on ASR1603 platfom, A7672 series is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/LTE-TDD#/GSM#/GPRS#/EDGE#. It  supports maximum 10Mbps downlink rate and 5Mbps uplink rate but B5 Band.

A7672 series adopt LCC+LGA form factor and are compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enable smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitate more compatible product design for the customer needs.

A7672 series support both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672 series also can support BLE# and GNSS# and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.





ProductA7672E
Form FactorLCC+LGA

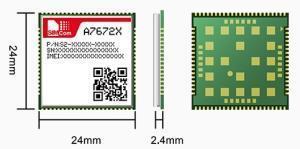

Dimensions(mm)24.0*24.0*2.4
Frequency BandsLTE-FDDB1/B3/B7/B8/
B20/B28#
LTE-TDDNA
GSMGSM/GPRS/EDGE
900/1800 MHz
Temperature-40℃ ~ +85℃
Electrical Features
Supply Voltage(V) 3.4~ 4.2
Power Consumption(mA)LTE1.5@LTE
Data Transfer
LTE(Mbps)10(DL)/5(UL)
EDGE(Kbps)236.8(DL/UL)
GPRS(Kbps)85.6(DL/UL)
Software Features
ProtocolTCP/IP/IPV4/IPV6/
Multi-PDP/FTP/ FTPS
/HTTP/HTTPS/DNS/MQTT
TLS●
Jamming Detection●
TTSO
File System●
WIFISCANO
BLE 5.0O
FOTA●
Android RILAndroid 5.0/6.0/7.0/8.0/9.0
USB DriverMicrosoft Windows 7/8/10
Linux/Android
WWAN (RNDIS)●
ECM●
Embedded ATO
Firmware UpgradeUSB/FOTA
Interfaces
SIM Card1.8V/3.0V
UART●
USB●
ADC●
Analog audio●
PCMO
GPIO●
I2C●
GNSSO
LCD●
Camera●
Certification
CertificationRoHS/REACH/CE-RED/
RCM/UKCA*/NCC/
GCF/Deutsche Telekom/BT
