A7602E-H, LTE MODULE LTE CAT4 (RTOS OS)	 - 1
SIMCOM

A7602E-H, LTE MODULE LTE CAT4 (RTOS OS)

Ürün Kodu : A7602E-H-PCIEA / S2-10F4L-Z335
Yorumlar
Paylaş:
Fiyat Alarmı
1.464,31 TL + KDV
Alışveriş Listeme Ekle

The A7602E-H Mini PCle is a LTE CAT4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

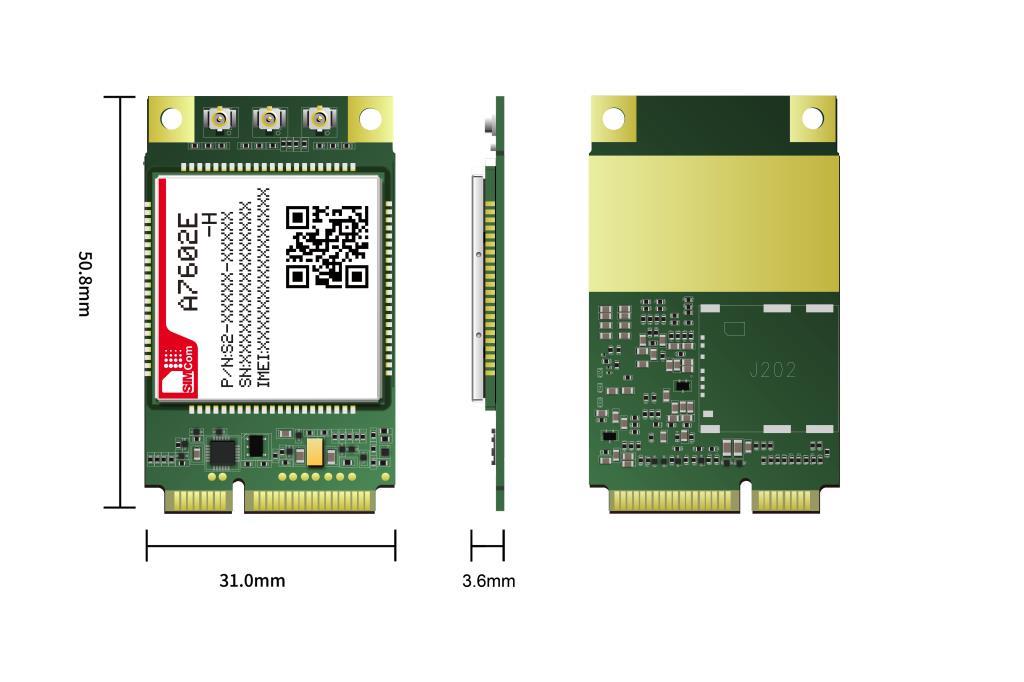

The A7602E-H Mini PCle adopts mini PCIE form factor and consists of a A7602E-H module and a mini PCIE adapter board. It is easy for customers to integrate.

The A7602E-H Mini PCle supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600 series modules. Meanwhile the A7602E-H Mini PCle integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.



- Mini-PCIE interface with strong compatibility.

- Suitable for LTE, UMTS and GSM networks.

- Support Analog Audio.

- Abundant software functions: FOTA, LBS, SSL.

- AT commands of the A7602E-H Mini PCle are compatible with the SIM7600 Series modules.



AT Command Manual
Hardware Design





General Features

Frequency Bands:

TDD-LTE  B38/B40/B41

FDD-LTE B1/B3/B5/B7/B8/B20

UMTS/HSPA+ B1/B8

GSM/GPRS/EDGE 900/1800 MHz

Supply Voltage: 3.0V ~ 3.6V, Typ: 3.3V

Control Via AT Commands

Operation temperature: -40℃ ~ +85℃

Dimensions: 50.8*31*5.35mm
Weight: TBD

Data Transfer

LTE Cat 4:

Uplink up to 50Mbps,

Downlink up to150Mbps

HSPA+:

Uplink up to 5.76Mbps

Downlink up to 42 Mbps

UMTS: Uplink/Downlink up to 384Kbps

EDGE Class: Uplink/Downlink up to 236.8Kbps

GPRS: Uplink/Downlink up to 85.6Kbps

Interfaces

USB2.0

UART

(U)SIM card(1.8V/3V )

Mic/Receiver

I2C

GPIO

Antenna: Primary/Diversity/GNSS*


Certifications

CE/UKCA/RCM

RoHS#/REACH#

Other Features

USB Driver for Microsoft Windows 7/8/10

USB Driver for Linux /Android

RIL supporting for Android 5.0/6.0/7.0/8.0/9.0

Firmware update via USB/FOTA

TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS

RNDIS/PPP/ECM

SMS

SSL
