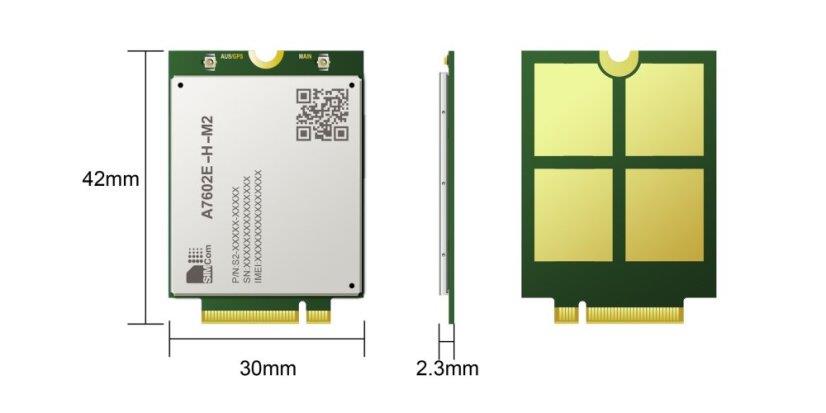

A7602E-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
A7602E-H supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600 series modules. Meanwhile A7602E-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
General Features Frequency Bands: LTE-TDD B38/B40/B41 Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V Control Via AT Commands Operation temperature: -40℃ ~ +85℃ Dimensions: 30.0*30.0*2.5mm Weight: 4.6±0.1g Data Transfer LTE Cat 4: Uplink up to 50Mbps HSPA+: Uplink up to 5.76Mbps UMTS: Uplink/Downlink up to 384Kbps EDGE: Uplink/Downlink up to 236.8Kbps GPRS: Uplink/Downlink up to 85.6Kbps | Interfaces USB2.0 UART (U)SIM card(1.8V/3V ) PCM Analog audio RMII* PCIE*（Host Mode） MMC/SD SDIO* ADC I2C GPIO Antenna: Primary/Diversity*/GNSS* | Other Features USB Driver for Microsoft Windows 7/8/10 USB Driver for Linux /Android RIL supporting for Android 5.0/6.0/7.0/8.0/9.0 Firmware update via USB/FOTA TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/ HTTPS/DNS RNDIS/PPP/ECM SMS SSL Certifications CE#/RoHS#/REACH# |
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000031832 |
| Tedarikçi Ürün Kodu | : | A7602E-H / S2-10CCW-Z32D5 |
