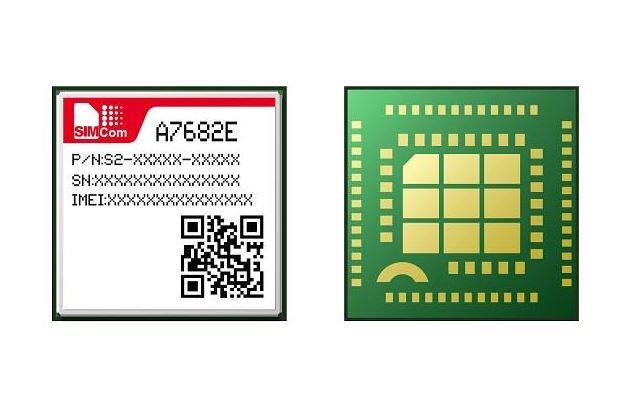

A7682E, LTE CAT1+2G without B5

Name: A7682E, LTE CAT1+2G without B5
Brand: SIMCOM
SKU: A7682E-(LASA-R)/ S2-10EC2
Price: 839.99 TRY
Availability: OutOfStock

Ürün Kodu : A7682E-(LASA-R)/ S2-10EC2

Yorumlar

Paylaş:

Fiyat Alarmı

839,99 TL + KDV

Stok Durumu:

Yok

- LCC+LGA form factor with abundant interfaces

- Suitable for LTE and GSM networks

- Abundant software functions: FOTA, LBS, SSL

- Compatible with the SIM800C,SIM868 series modules

Product Details

General Features

Frequency Bands:

LTE-FDD B1/B3/B5/B7/B20

GSM/GPRS/EDGE 900/1800 MHz

Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V

Control Via AT Commands:

Operation temperature: -40℃ ~ +85℃

Dimensions: 19.6*19.6*2.4mm

Weight: 1.9g±0.1

Data Transfer

LTE Cat 1:

Uplink up to 5Mbps

Downlink up to10Mbps

EDGE: Uplink/Downlink up to 236.8Kbps

GPRS: Uplink/Downlink up to 85.6Kbps

Other Features

USB Driver for Microsoft Windows 7/8/10

USB Driver for Linux /Android

RIL supporting for Android 5.0/6.0/7.0/8.0/9.0

Firmware update via USB/FOTA

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS

RNDIS/PPP/ECM

SMS

SSL

Certifications

CE#/RoHS#/REACH#

Interfaces

USB2.0

UART

(U)SIM card(1.8V/3V )

Analog audio

ADC

I2C

GPIO

Antenna: Primary
