WAVESHARE
Core1262-868M LoRa Module, SX1262, Anti-Interference, EU868 Band
Ürün Kodu
:
LTE-WS20855
Yorumlar

Core1262-868M LoRa Module, SX1262, Anti-Interference, EU868 Band
681,66
TL
+
KDV
Stok Durumu:
Yok

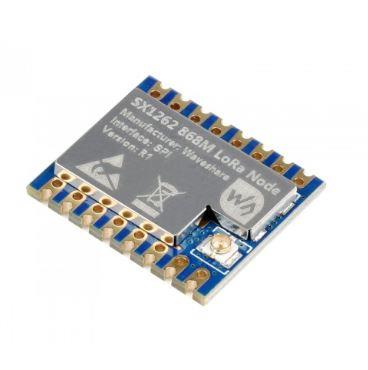

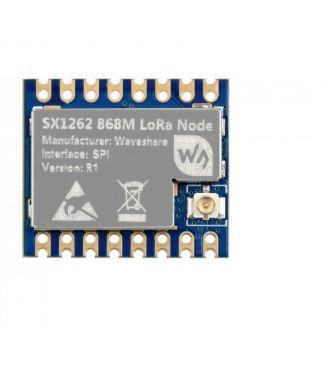

Core1262-868M LoRa Module
EU868 band support

Features At A Glance
The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has featuress including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network.
- New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278
- EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
- Comes with rich development resources and manual (examples for STM32, Raspberry Pi Pico)
Specifications
| RF chip | SX1262 |
| Frequency range | EU868 (863~870MHz) |
| Modulation | LoRa/(G)FSK |
| Data rate | 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK) |
| Emit power | > 14dBm@3.3V |
| Spreadind factor | SF5 ~ SF12 |
| Operating voltage | 3.3V |
| Module power consumption | emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz |
| Communication bus | SPI |
| Operating temperature | -40 ~ 85℃ |
| Connector | castellated edge / solder holes |
| Dimensions | 21.00×52.00mm |

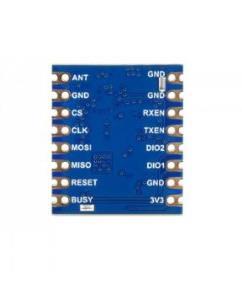

Pinout Definition

Outline Dimensions
