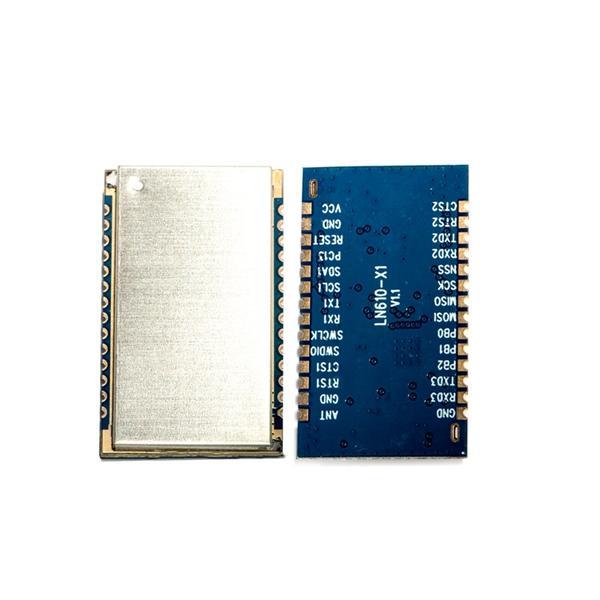

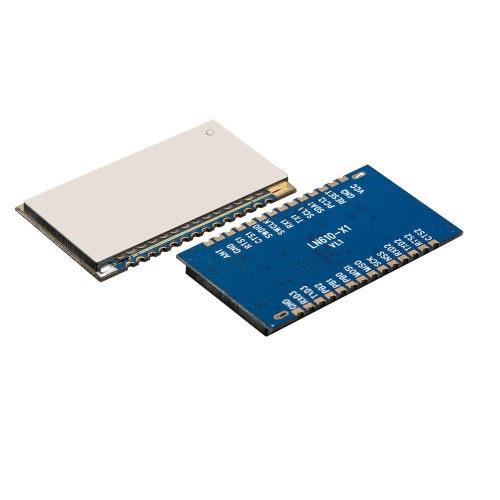

LN610 is the LoRaWAN node module. LG1301-PF/ LG1301-SE are LoRaWAN gateways. LN610 work with LG1301 to build a LoRaWAN system. This LoRaWAN system integrated the protocol of LoRAWAN V1.0 , and support class C .
When data input to LN610, LN610 will transmit to LG1301. When received the data from LG1301, LN610 will output the received data to the series interface. All the wireless communication comply the LoRaWAN protocol.
Either LG1301-PF or LG1301-SE can be worked with LN610.The detail of these two gateways refer to the datasheet of gateway.
★ Note: the following parameters is VCC = 3.3, with 50 ohm copper axis test instrumentation.
| Parameter | Min | Typ | Max | Unite | Condition |
| Working Condition | |||||
| Working voltage range | 1.8 | 3.3 | 3.6 | V | |
| Temperature voltage | -40 | 85 | ℃ | ||
| Current Consumption | |||||
| Receiving current | 18 | mA | @Vcc=3.3v | ||
| Transmitting current | 100 | 110 | 120 | mA | Vcc=3.3v,Tx=20dBm |
| Sleep current | <2 | 3 | uA | CS Active H | |
| RF Parameter | |||||
| TX Power | 4 | 18 | 20 | dBm | |
| Receiving sensitivity | -131 | -132 | -133 | dBm | @BW=125KHz,SF=10 |
| 2nd Harmonic radations | -45 | dBm | |||
| 3rd Harmonic radiations | -50 | dBm | |||
Features
- LoRaWAN protocol supported
- Uart interface
- AES128 encryption
- 8 channel communication simultaneously
- Configurable parameters
- OTAA & ABP
- Long range & Small size
- ADR
- EU433M / EU868M / KR920M / AS923M / CN780M/ CN470M / US915M / AS915M
Application
- Smart city
- Smart Metering ( Water, Electric, Gas meter )
- Agricultural Monitoring
- Irrigation control
- Internet of Things (IoT)
- M2M
- Wireless Sensors
- Wireless Alarm and Security Systems
