SIM7672 series is the LTE Cat 1 module based on the latest QCX216 chipset that supports wireless communication modes of LTE-FDD/LTE-TDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
SIM7672 series adopts LCC+LGA form factor and is compatible with A7672 series (Cat1 modules), SIM7000/SIM7070 series (NB/Cat M modules), and SIM800/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products and greatly facilitates more compatible product design for the customer needs.
SIM7672 series supports both multiple built-in network protocols and the drivers for three main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. SIM7672 series also integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, metering, surveillance devices, industrial routers, and remote diagnostics etc.
Documents and Application Notes
Product Advantages
- Compact size with abundant interfaces
- Abundant software functions: FOTA, LBS*, SSL
- Form factor is compatible with the A7672/SIM7000/SIM7070 series and 2G SIM800F/SIM800
Product Details
Product | SIM7672G | SIM7672NA | SIM7672E |
Form Factor | LCC+LGA | LCC+LGA | LCC+LGA |

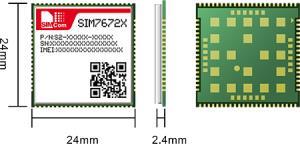

Dimensions(mm) | 24.0*24.0*2.4 | 24.0*24.0*2.4 | 24.0*24.0*2.4 |
Frequency Bands | LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 | B2/B4/B5/B12/B13/B25/B26/B66 | B1/B3/B7/B8/B20/B28* |
LTE-TDD | B34/B38/B39/B40/B41 | NA | NA |
GSM | NA | NA | NA |
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
Electrical Features |
Supply Voltage(V) | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 |
Power Consumption(mA) | LTE | TBD | TBD | TBD |
Data Transfer |
LTE(Mbps) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) |
Software Features |
Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS/MQTT | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS/MQTT | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS/MQTT |
TLS | ● | ● | ● |
File System | ● | ● | ● |
WIFISCAN | o | o | o |
LBS | o | | o | o |
FOTA | ● | ● | ● |
Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 |
USB Driver | Microsoft Windows 7/8/10 Linux/Android| Ürün Filtreleri |
|---|
