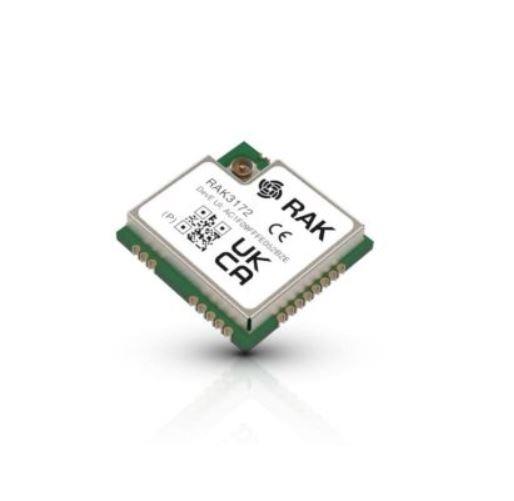

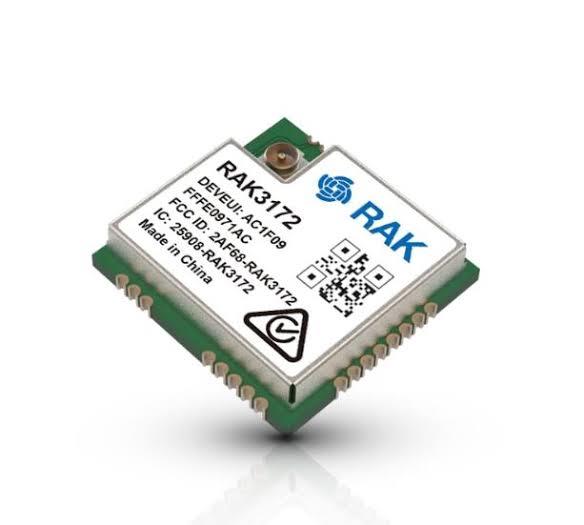

RAK3172H WisDuo LPWAN Module, 868MHz with IPEX(305045)

Product Description

RAK3172 is a Low-Power Long Range Transceiver module that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.

 configure the mode and operation of the module using AT commands via a UART interface. RAK3172 also offers low power features which is very suitable for battery-powered applications.

#Product Features

• Based on STM32WLE5CCU6
• LoRaWAN 1.0.3 specification compliant
• Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4
• LoRaWAN Activation by OTAA/ABP
• LoRa Point-to-Point (P2P) communication
• Easy to use AT Command Set via UART interface
• Long-range - greater than 15 km with optimized antenna
• ARM Cortex-M4 32-bit
• 256 kbytes flash memory with ECC
• 64 kbytes RAM
• Ultra-Low Power Consumption of 1.69 μA in sleep mode
• Supply Voltage: 2.0 V ~ 3.6 V
• Temperature Range: -40° C ~ 85° C
