RAK4260 WisDuo LPWAN Module, 868MHz with IPEX - 1RAK4260 WisDuo LPWAN Module, 868MHz with IPEX - 2RAK4260 WisDuo LPWAN Module, 868MHz with IPEX - 3
RAK WIRELESS

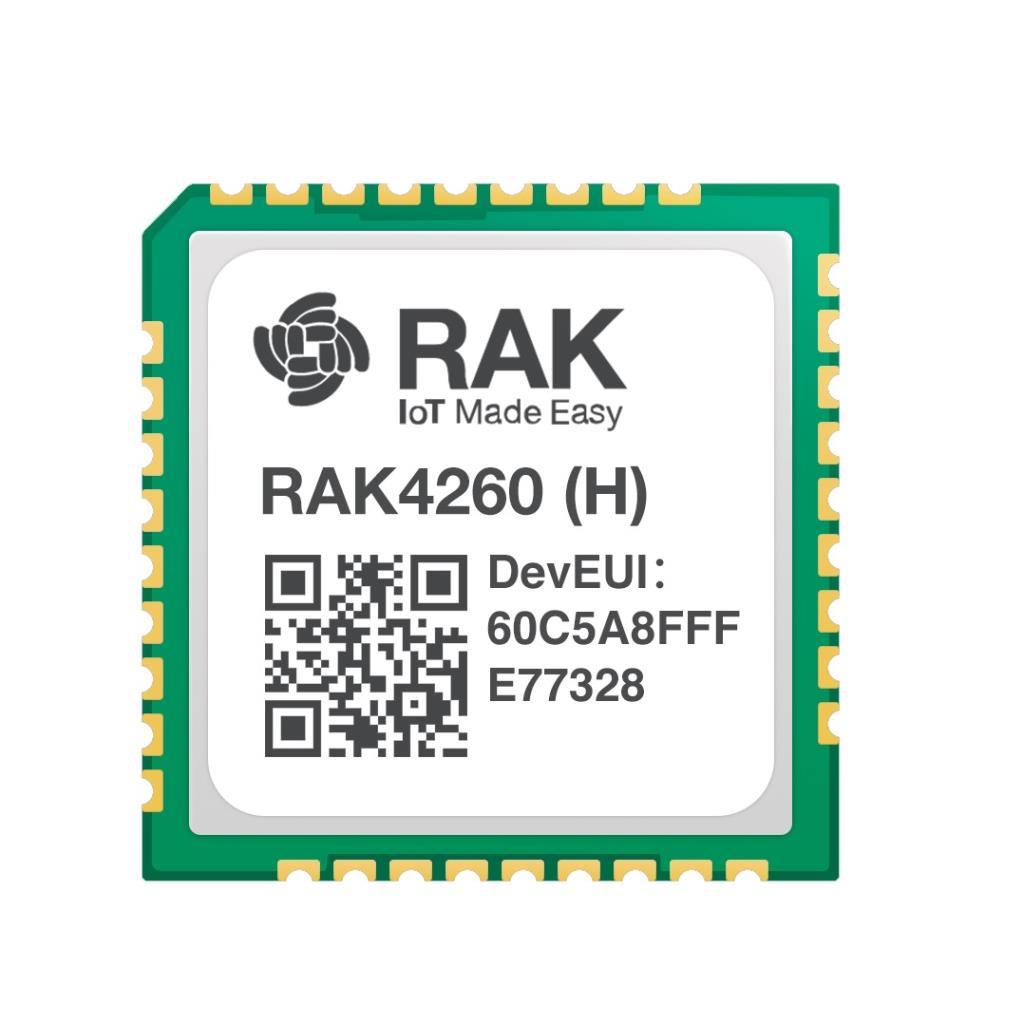

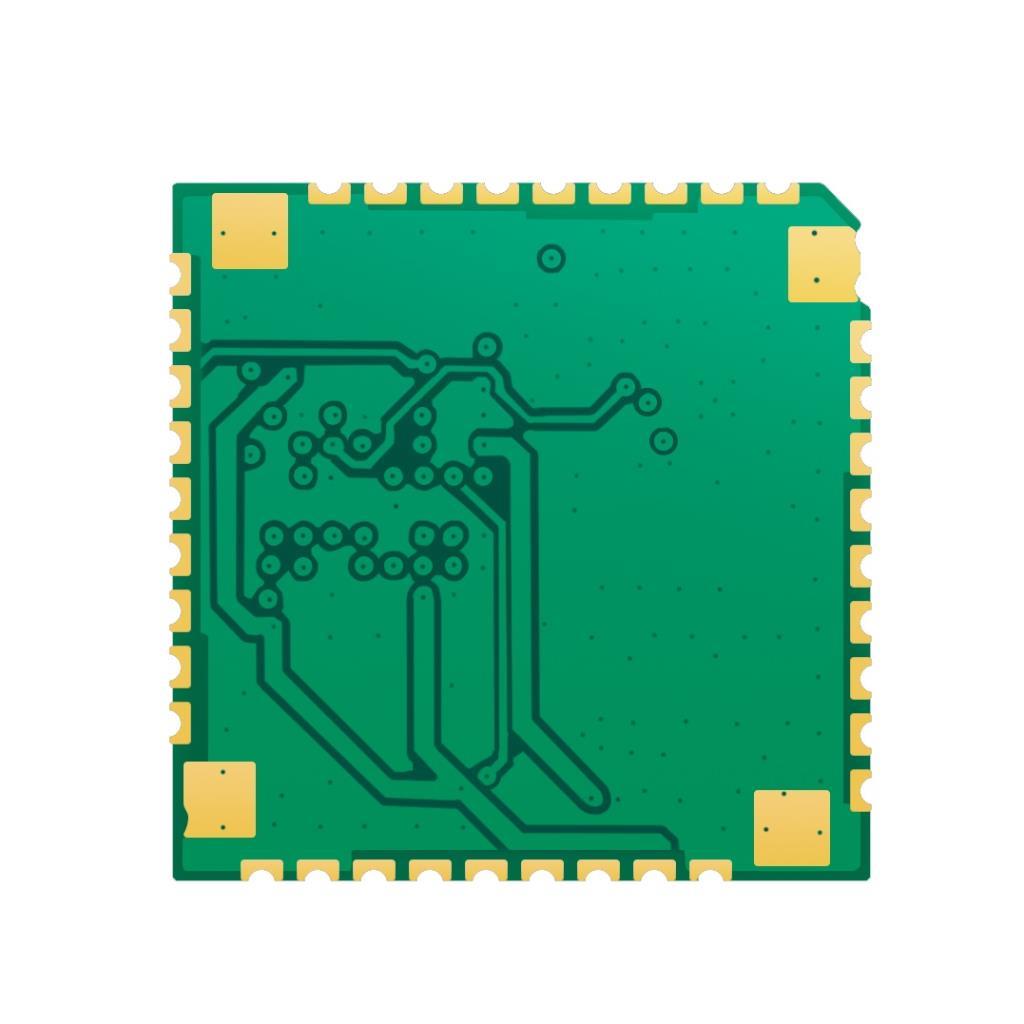

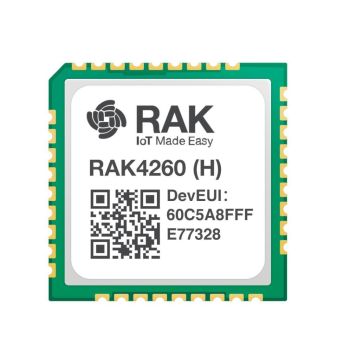

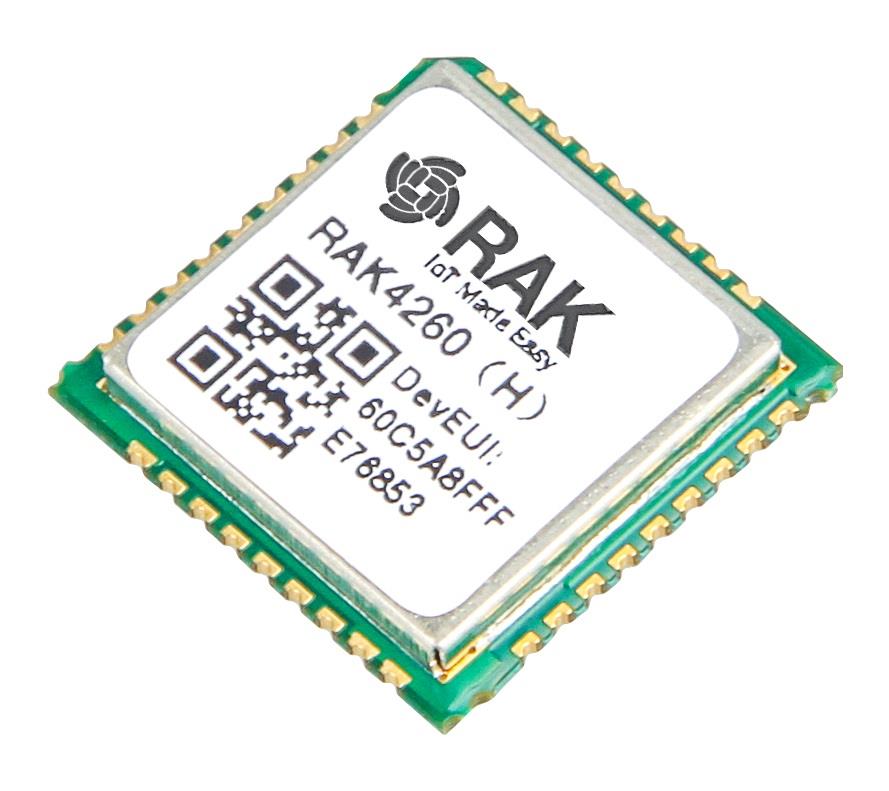

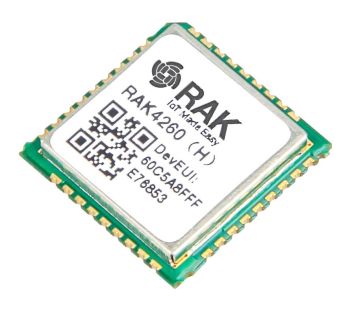

RAK4260 WisDuo LPWAN Module, 868MHz with IPEX

Ürün Kodu : RAK4260 -868MHz
Yorumlar
Paylaş:
Fiyat Alarmı
908,88 TL + KDV

The RAK4260 LPWAN Module is based on Microchip's ATSAMR34J18B. It is a SiP device integrating a 32-bit ARM Cortex -M0+ MCU with a LoRa Transceiver in a compact surface mount package.

The SAMR chip provides a number of highly configurable peripherals (configurable as I2C/SPI/UART interfaces). There are 12-bit ADC in addition to the aforementioned.

It is a perfect solution for any LoRaWAN® end node developer. The integration of the MCU and LoRa® transceiver reduces the size and minimizes costs. Having such a compact solution within a single package reduces time to market and allows for rapid development and deployment for a number of scenarios.

RAK4260 is a solution that is cost-efficient and flexible. It can be deployed in a wide variety of IoT scenarios that require the long-range connectivity and great battery life that LoRaWAN® provides.

If you need a complete development board, you can choose the RAK4260 Evaluation Board that has RAK4260 LoRa® Board pre-soldered in RAK4261, with RAK5005 development board included.

Key Features

  • High-quality Low power LoRa® device (Microchip ATSAMR34J18 SiP)
  • Fully supported 862 to 1020 MHz frequency coverage (all LoRaWAN® bands)
  • High level of accuracy and stability (32MHz TXCO)
  • Max Tx Power: 20dBm
  • Max Sensitivity (SF12 BW125kHz):  -136dBm
  • Rx Current: 17mA (typical)
  • A rich selection of interfaces: I2C, SPI, ADC, UART, GPIOs

Packaging

  • Module Size: 15mm x 15mm x 2.0mm
