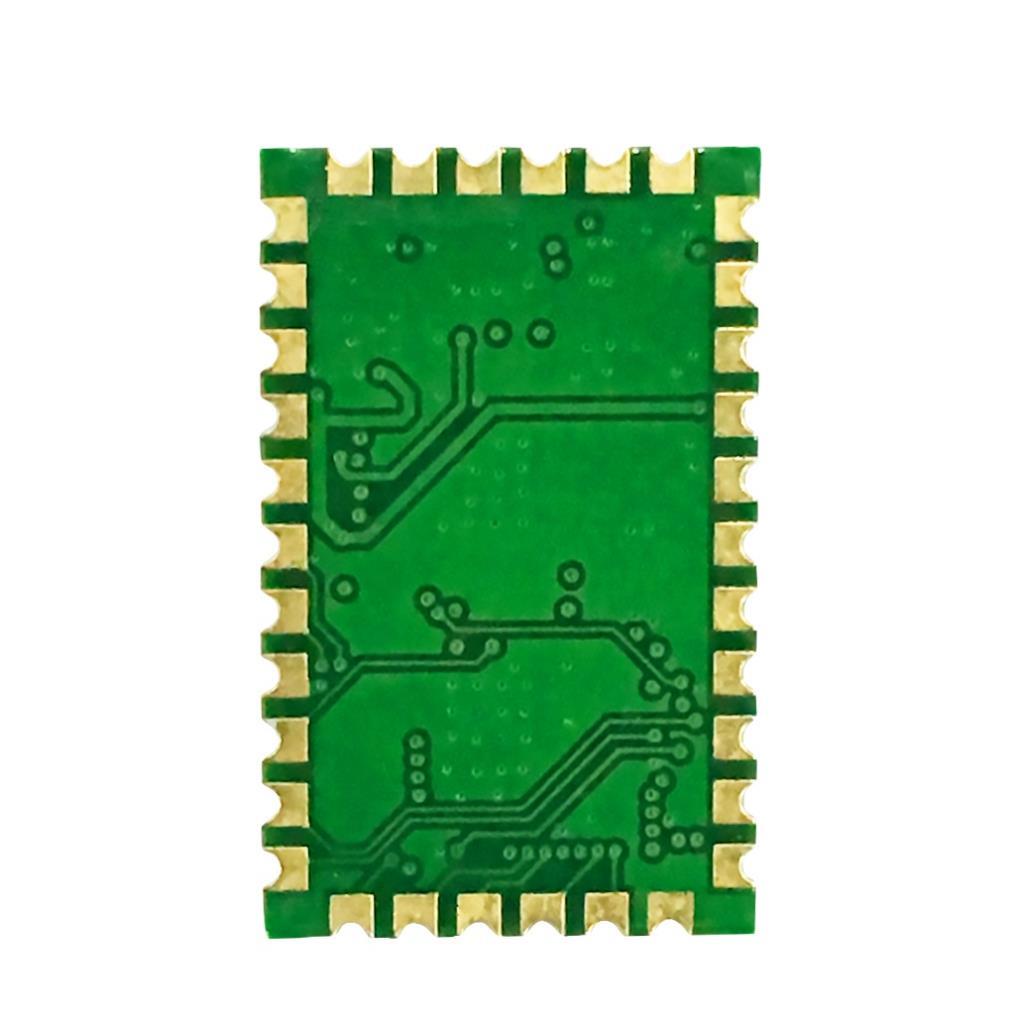

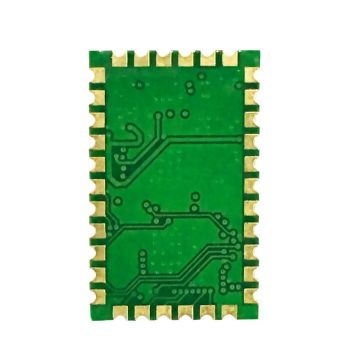

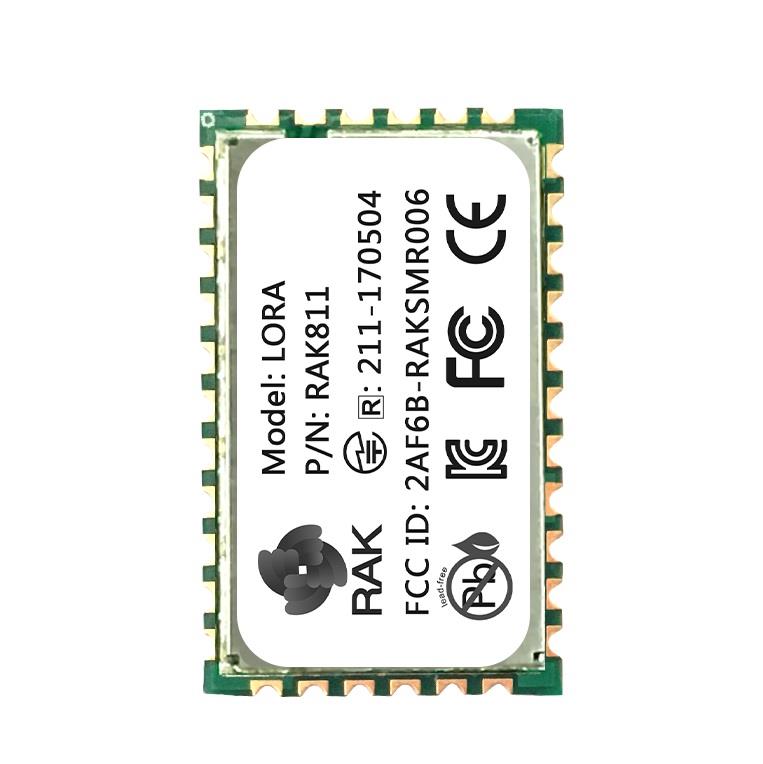

RAK811 WisDuo LPWAN Module, 868MHz with IPEX

Product Description

With Semtech® SX1276 at its core, the RAK811(WisDuo LPWAN Module) takes advantage of all LoRa® features. Long-range, low power consumption is at its core.

Its setup is easy and straightforward. The firmware fully supports the LoRaWAN® 1.0.2 stack. The node can work in a number of modes, with different data rates and read data from the attached sensors. This is all configurable via AT commands.

Key Features

• Based on Semtech SX1276
• Full LoRaWAN 1.0.2 stack support
• Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920, and AS923
• Output power: 5 to 20dBm adjustable
• High sensitivity: down to -148dBm
• Easy to use AT Command Set via UART interface with configurable baud rate.
• Theoretical max range of 2km in Urban and 15km in open areas
• Operating temperature: -30°C ~ 85°C (industrial grade)
• Storage temperature: -40°C ~ 85°C (non-condensing)

Packaging

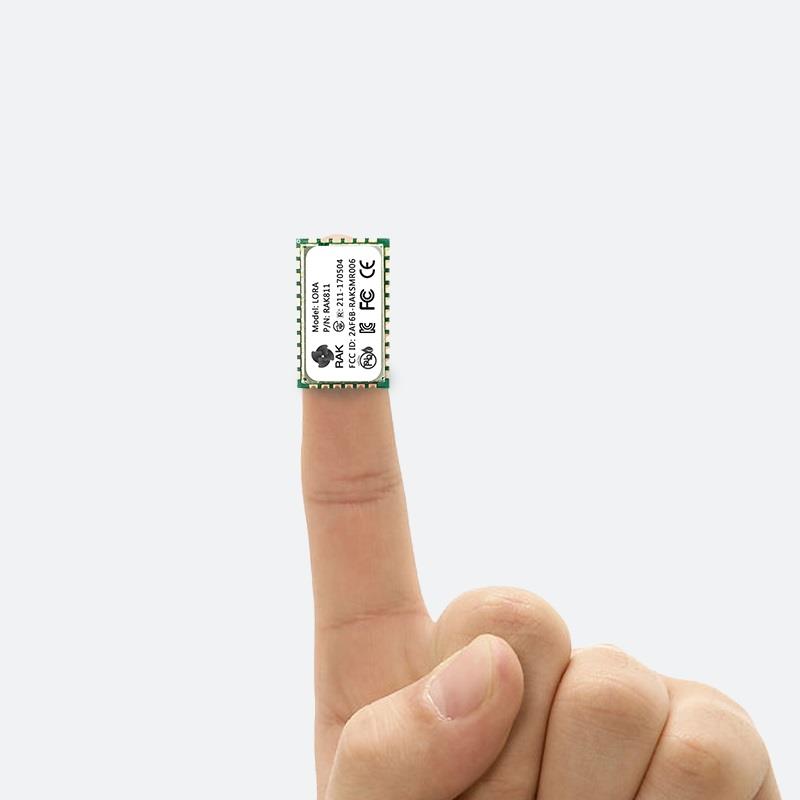

• Module Size: 22mm x 14mm x 1.7mm
• Module Weight: Approximate 0.1kg
