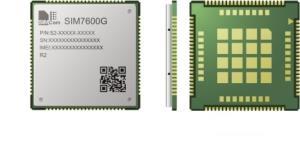

The SIM7600G R2 is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/
LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7600G R2 adopts LCC+LGA form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.
The SIM7600G/-H R2 integrates multiple satellite high accuracy positioning GNSS systems With multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600G R2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
• LCC+LGA form factor with abundant interfaces
• Multi-constellation GNSS receiver*
• Suitable for LTE, UMTS and GSM networks with global coverage
• Abundant software functions: FOTA, TLS, VoLTE
• AT commands of the SIM7600G R2 are compatible with the SIM7500/SIM7600-H series modules
Product Details
General Features • Frequency Bands:
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/ B28/B66
UMTS/HSPA+
B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE

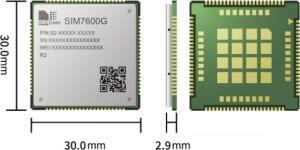

850/900/1800/1900MHz • Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V Control Via AT Commands • Operation temperature: -40℃ ~ +85℃ • Dimensions : 30.0*30.0*2.5mm • Weight : 5.7±0.1g
Data Transfer • LTE Cat 1 : Uplink up to 5Mbps
Downlink up to10Mbps • HSPA+: Uplink up to 5.76Mbps
Downlink up to 42 Mbps • UMTS: Uplink/Downlink up to 384Kbps • EDGE: Uplink/Downlink up to 236.8Kbps • GPRS: Uplink/Downlink up to 85.6Kbps | Other Features • USB Driver for Microsoft Windows 7/8/10 • USB Driver for Linux /Android • RIL supporting for Android 5.0/6.0/7.0/8.0/9.0 • Firmware update via USB/FOTA • TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS • RNDIS/NDIS/ECM • MBIM to Win8 • SSL3.0/TLS1.0/TLS1.2 • DTMF*/Audio Playing* • USB Audio* and VoLTE* • FOTA | Interfaces • USB2.0 • UART • (U)SIM card(1.8V/3V ) • PCM* • SGMII* • MMC/SD • SDIO • ADC • I2C • GPIO • Antenna: Support Primary/Rx-diversity/GNSS* Certifications • RoHSREACHJATETelecRCMCE(RED)GCF
FCCPTCRBAT&TVerizonT-MobileUS CellularIC Note • *: optional • #: on going |
