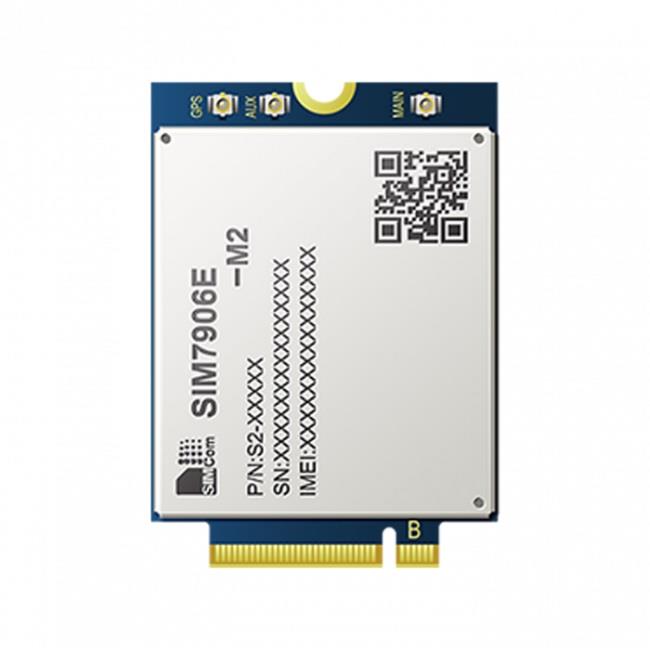

The SIM7906-M2 series is the LTE Cat 6 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+. It supports maximum 300Mbps downlink rate and 50Mbps uplink rate.
The SIM7906-M2 series adopts M.2 form factor. It is easy for customers to integrate.
The SIM7906-M2 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7906-M2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
● M.2 interface with strong compatibility
● Suitable for LTE, HSPA+ networks with global coverage
● Abundant software functions: FOTA, SSL, TLS
● Multi-constellation GNSS receiver support
● AT commands of SIM7906E-M2 are compatible with the SIM7912X-M2 series modules
Product Details
Product | SIM7906E-M2 1NN0G0AA | SIM7906E-M2 1NN0G0AB | SIM7906E-M2 1NN0G0AC |
Form Factor | M2 | M2 | M2 |
Dimensions(mm) | 42.0*30.0*2.3 | 42.0*30.0*2.3 | 42.0*30.0*2.3 |
Frequency Bands | LTE-FDD | B1/B3/B5/B7/B8/B20/B28/B32 | B1/B3/B5/B7/B8/B20/B28/B32 | B1/B3/B5/B7/B8/B20/B28/B32 |
LTE-TDD | B38/B40/B41/B42/B43/B46/B48 | B38/B40/B41 | B38/B40/B41/B42/B43/B48 |
WCDMA | B1/B3/B5/B6/B8/B9/B19 | B1/B3/B5/B6/B8/B9/B19 | B1/B3/B5/B6/B8/B9/B19 |
GNSS | ● | ● | ● |
MIMO | 2x2 MIMO | 2x2 MIMO | 2x2 MIMO |
Temperature | -30℃ ~ +70℃ | -30℃ ~ +70℃ | -30℃ ~ +70℃ |
Electrical Features | | |
Supply Voltage(V) | 3.135 ~ 4.4 | |
Data Transfer | | |
LTE | 300Mbps(DL)/50Mbps(UL) | 300Mbps(DL)/50Mbps(UL) | 300Mbps(DL)/50Mbps(UL) |
HSPA+ | 42Mbps (DL)/11.2Mbps(UL) | 42Mbps (DL)/11.2Mbps(UL) | 42Mbps (DL)/11.2Mbps(UL) |
Software Features | | |
Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 | |
TLS | ● | ● | ● |
File System | ● | ● | ● |
FOTA | ● | ● | ● |
Android RIL | Android 6/7/8/9 | Android 6/7/8/9 | Android 6/7/8/9 |
USB Driver | |
