SIM7912X is the LTE Cat 12 module which supports wireless communication modes of LTE-TDD/LTE- FDD/HSPA+. It supports maximum 600Mbps downlink rate and 150Mbps uplink rate.
SIM7912X adopts LGA form factor. It is easy for customers to integrate.
SIM7912X integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600/SIM7906 series modules. Meanwhile SIM7912X integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
- LGA interface with strong compatibility
- Suitable for LTE, HSPA+ networks with global coverage
- Abundant software functions: FOTA, SSL, TLS
- Multi-constellation GNSS receiver support
- AT commands of SIM7912G-M2 are compatible with the SIM7500/SIM7600/SIM7906 series modules
Product Details
Product | SIM7912E | SIM7912A |
Form Factor | LGA | LGA |
Dimensions(mm) | 39.5*37.0*2.8 | 39.0*37.0*2.8 |
Frequency Bands | LTE-FDD | B1/B3/B5/B7/B8/B20/B28 | B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 |
LTE-TDD | B38/B40/B41 | B41/B42/B43/B48 |
CA | 2CA:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41;B3+B3/B5/B7/B8/B20/B28/B38/B40/B41;B7+B5/B7/B8/B20/B28;
B20+B38/B40;B38+B38;B40+B40;B41+B41
3CA: B1+B3+B3/B5/B7/B8/B20/B28/B38/B41;B1+B40+B40;B1+B41+B41;B1+B7+B20;B3+B3+B7/B20/B28;
B3+B7+B7/B8/B20/B28;B3+B40+B40;B3+B41+B41;B7+B7+B20/B28;B40+B40+B40;B41+B41+B41
| DL 3CA
B2+B4+B5/B13/B71;B2+B5+B66;B2+B12+B30;B2+B13+B66;B2+B7+B12/B66;B4+B30+B5/B12/B29;B4+B7+B1
2;B30+B66+B5/B12/B29;B2+B2+B5/B12/B13/B29/B66;B5+B5+B2/B30/B66;B7+B7+B2/B4/B5;B66+B66+B2/B5/
B13/B66;B41+B41+B25/B26/B41;B2+42C;B4+42C
DL 2CA
B2+B2/B4/B5/B7/B12/B13/B14/B17/B29/B30/B48/B66/B71;B25+B5/B12/B25/B26/B41;B4+B4/B5/B7/B12/B13/B1
7/B29/B30/B48/B71;B66+B5/B7/B12/B13/B14/B29/B30/B66/B71;B7+B5/B7/B12;B30+B5/B12/B14/B29;B26+B41;B48+B48
B2+B42;42C |
WCDMA | B1/B3/B5/B8 | B2/B4/B5 |
GNSS | ● | ● |
Temperature | -30℃ ~ +70℃ | -30℃ ~ +70℃ |
Electrical Features |
Supply Voltage(V) | 3.135 ~ 4.4 | 3.135 ~ 4.4 |
Data Transfer |
LTE | 600Mbps(DL)/150Mbps(UL) | 600Mbps(DL)/150Mbps(UL) |
HSPA+ | 42Mbps (DL)/11.2Mbps(UL) | 42Mbps (DL)/5.76Mbps(UL) |
Software Features |
Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
TLS | ● | ● |
File System | ● | ● |
FOTA | ● | ● |
Android RIL | Android 6/7/8/9 | Android 6/7/8/9 |
USB Driver | Microsoft Windows Win7/Win8/Win10/Linux/Android | Microsoft Windows Win7/Win8/Win10/Linux/Android |
MBIM | Win8/Win10 | Win8/Win10 |
NDIS | Linux/Win7/Win8/Win10 | Linux/Win7/Win8/Win10 |
Firmware Upgrade | USB | USB |
Interfaces |
SIM Card | 1.8V/2.95V | 1.8V/2.95V |
USB | ● | ● |
PCM | ● | ● |
I2C | ● | ● |
|
| Ürün Filtreleri |
|---|
| Barkod | : | 8690000026241 |

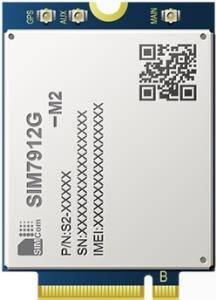

| Tedarikçi Ürün Kodu | : | SIM7912G-M2 / S2-10CGY |
