SIM800C , 2G Module (SMT) - 1SIM800C , 2G Module (SMT) - 2
SIMCOM

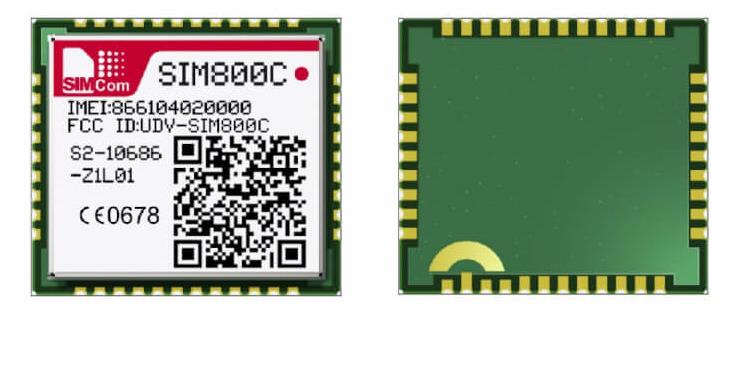

SIM800C , 2G Module (SMT)

Ürün Kodu : SIM800C / S2-1068S-Z1L1D
Yorumlar
Paylaş:
Fiyat Alarmı
484,99 TL + KDV
GSM/GPRS Module

The SIM800C is a Quad-Band GSM/GPRS module in a LCC type which supports GPRS up to 85.6kbps data transfer. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.



Product Advantages

●   Small size quad-band GSM/GPRS module

●   LCC form factor, easy for solder

●   Abundant software functions: DTMF, MMS, MUX

●   Low Power consumption

●   Embedded TCP/UDP protocols

Product Details

General features
• Frequency Bands: 850/900/1800/1900MHz
• GPRS multi-slot class: 12/10

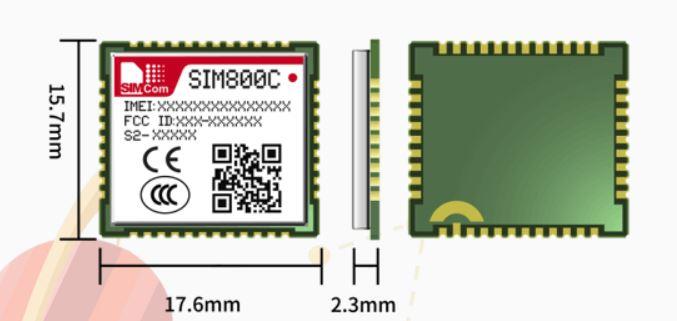

• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.3±0.1g
• Supply voltage: 3.4 ~ 4.4V
• Operation temperature:-40℃ ~85℃
• Compliant GSM phase 2/2+: Class 4 (2W @ 850/900MHz)
• Compliant GSM phase 2/2+: Class 1 (1W @ 1800/1900MHz)
• Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)
• Low power consumption
• GPRS mobile station class B

Specifications for GPRS Data
• GPRS class 12: Uplink/Downlink up to 85.6Kbps
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP/POP3/SMTP
• MMS
• D TMF
• Jamming Detection
• Audio Record
• LBS*
• SSL/TLS*
• BT 3.0*
• TTS*
• EAT*

Specifications for voice
• Speech Codec Modes
– AMR/HR/FR/EFR
• Echo Arithmetic
– AEC/EES
Interfaces
• Analog audio interface
• UART
• (U)SIM card(1.8V/3V )
• RTC
• ADC
• GPIO
• Antenna: GSM/BT*

Certifications
• RoHSREACHCCCCTASRRCMobileUnicomRCMCE(RED)GCFBQB(Bluetooth)TIMDeutsche TelekomICASAFCCOCD(Anatel)
