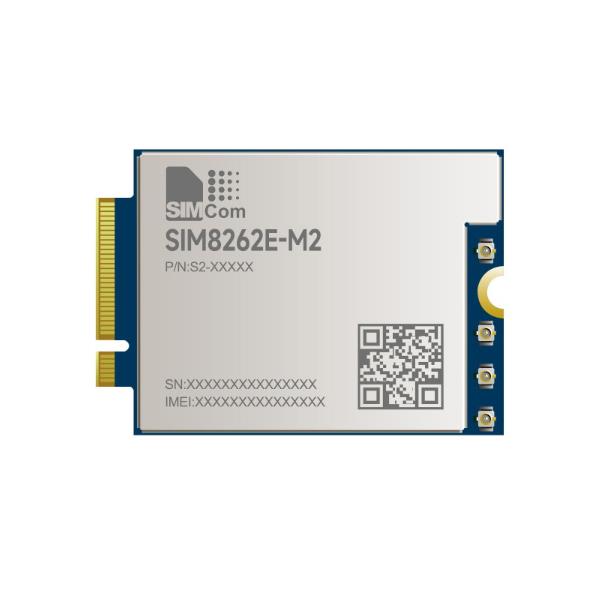

SIM8262E-M2 SIMCom original 5G module, M.2 form factor, Qualcomm Snapd - 2

SIM8262E-M2 SIMCom original 5G module, M.2 form factor, Qualcomm Snapd

Name: SIM8262E-M2 SIMCom original 5G module, M.2 form factor, Qualcomm Snapd
Brand: SIMCOM
SKU: LTE-WS23145
Price: 13499.81 TRY
Availability: OutOfStock

Ürün Kodu : LTE-WS23145

Yorumlar

Paylaş:

Fiyat Alarmı

13.499,81 TL + KDV

Stok Durumu:

Yok

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM8262E-M2 SIMCom Original 5G Module, M.2 Form Factor, Qualcomm Snapdragon X62

SIM8262E-M2

SIMCom 5G Module Sub-6G Module Based On Qualcomm Snapdragon X62
Adopt 3GPP 5G Release 16

The SIM8262E-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

The SIM8262E-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Product Advantages

Standard M.2 interface.
High throughput data communication.
AT commands of the SIM8262E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules

Specifications

	SIM8200EA-M2	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2
5G STANDARD	3GPP R15		3GPP R16
CHIP	Qualcomm Snapdragon X55		Qualcomm Snapdragon X62
FREQUENCY BAND
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71		B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48		B38, B39, B40, B41, B42, B43	B41, B46, B48
WCDMA	B1, B2, B3, B4, B5, B8		B1, B5, B8	B2, B4, B5
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
DATA RATE
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)
LTE	1 Gbps (DL) / 200 Mbps (UL)
HSPA+	42 Mbps (DL) / 5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems	Windows/Linux/Android
Communication protocols	TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial Up	RNDIS、NDIS、PPP、MBIM
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card	1.8V/2.95V
Antenna	For 3G/4G/5G/GNSS
Antenna	6 × IPEX-4 connectors	4 × IPEX-4 connectors
Power Supply	3.135~4.4V
Form Factor	M.2
Dimensions	52.0 × 30.0 × 2.3 mm	42.0 × 30.0 × 2.3 mm
Operating Temperature	-30℃ ~ +70℃
APPLICATIONS
Applicable regions	China, US, Japan, South Korea, Europe, the Middle East, Latin America		except Americas	Americas
Applicable regions	The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
