SIMCOM

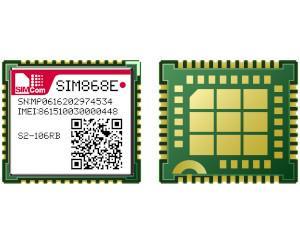

SIM868E, GSM + GNSS Combo Module

Ürün Kodu : SIM868E / S2-106RB-Z1Q6X-Z1Q6R
Yorumlar
734,57 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • GSM/GPRS+GNSS Module

    SIM868E module is the complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.



    Product Advantages

    ●   Small size quad-band GSM/GPRS + GNSS module

    ●   LCC+LGA form factor with rich interfaces

    ●   Rich software functions: DTMF, MMS, MUX

    ●   Low power consumption

    ●   Embedded TCP/UDP protocols

    ●   Multi-constellation GNSS receiver support: GPS, GLONASS, BeiDou

    ●   Support BLE4.0



    Product Details

    General features
    • Frequency Bands: 850/900/1800/1900MHz
    • GPRS multi-slot class: 12/10
    • Dimensions: 17.6*15.7*2.3mm
    • Weight: 1.5±0.1g
    • Supply voltage: 3.4 ~ 4.4V
    • Operation temperature: -40℃ ~ +85℃
    • Compliant GSM phase 2/2+:
    – Class 4 (2W @ 850/900MHz)
    – Class 1 (1W @ 1800/1900MHz)
    • Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)
    • Low Power consumption
    • GPRS mobile station class B

    Specification for GNSS
    Receiver type
    -33 tracking /99 acquisition -channel
    Sensitivity
    -Tracking: -167 dBm
    -Reacquisition: -161 dBm
    -Cold starts : -149 dBm
    Time-To-First-Fix
    -Cold starts: 28s (typ.)
    -Hot starts: <1s
    -Warm starts: 22s
    Accuracy
    -Horizontal position : <2.5m CEP
    Software features
    • 0710 MUX protocol
    • Embedded TCP/UDP protocol
    • FTP/HTTP/POP3/SMTP
    • MMS
    • DTMF
    • Jamming Detection
    • Audio Record
    • LBS*
    • SSL/TLS*
    • BT 3.0&4.0
    • TTS*
    • EAT*

    Specifications for SMS via GSM/GPRS
    • Point to point MO and MT
    • SMS cell broadcast
    • Text and PDU mode

    Specifications for GPRS Data
    • GPRS class 12: Uplink/Downlink up to 85.6Kbps
    • PBCCH support
    • Coding schemes CS 1, 2, 3, 4
    • PPP-stack
    • USSD

    Interfaces
    • Analog audio interface
    • UART
    • USB
    • (U)SIM card(1.8V/3V )
    • USB interface
    • Serial interface
    • SD
    • RTC GNSS backup
    • ADC
    • I2C
    • GPIO
    • Antenna: GSM/GNSS/BT*

    Certifications
    • RoHS\REACH\CCC\CTA\SRRC\Mobile\Unicom\RCM\CE(RED)\GCF\BQB(Bluetooth)\TIM\Deutsche Telekom

    Specifications for Voice
    • Speech Codec Modes
    - AMR/HR/FR/EFR
    • Echo Arithmetic
    - AEC/EES



    Ürün Özellikleri
    FREKANS
    :
    2G Module ( GSM / GPRS ), GPS / GNSS Module
