SIM868E, GSM + GNSS Combo Module - 1
SIMCOM

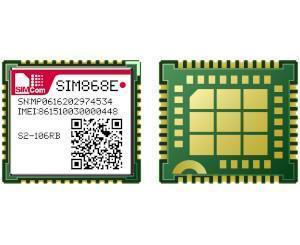

SIM868E, GSM + GNSS Combo Module

Ürün Kodu : SIM868E /S2-106RB-Z1Q66-Z1Q5Z
Yorumlar
Paylaş:
Fiyat Alarmı
724,99 TL + KDV

GSM/GPRS+GNSS Module

SIM868E module is the complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.



Product Advantages

●   Small size quad-band GSM/GPRS + GNSS module

●   LCC+LGA form factor with rich interfaces

●   Rich software functions: DTMF, MMS, MUX

●   Low power consumption

●   Embedded TCP/UDP protocols

●   Multi-constellation GNSS receiver support: GPS, GLONASS, BeiDou

●   Support BLE4.0



Product Details

General features
• Frequency Bands: 850/900/1800/1900MHz
• GPRS multi-slot class: 12/10
• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.5±0.1g
• Supply voltage: 3.4 ~ 4.4V
• Operation temperature: -40℃ ~ +85℃
• Compliant GSM phase 2/2+:
– Class 4 (2W @ 850/900MHz)
– Class 1 (1W @ 1800/1900MHz)
• Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)
• Low Power consumption
• GPRS mobile station class B

Specification for GNSS
Receiver type
-33 tracking /99 acquisition -channel
Sensitivity
-Tracking: -167 dBm
-Reacquisition: -161 dBm
-Cold starts : -149 dBm
Time-To-First-Fix
-Cold starts: 28s (typ.)
-Hot starts: <1s
-Warm starts: 22s
Accuracy
-Horizontal position : <2.5m CEP
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP/POP3/SMTP
• MMS
• DTMF
• Jamming Detection
• Audio Record
• LBS*
• SSL/TLS*
• BT 3.0&4.0
• TTS*
• EAT*

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Specifications for GPRS Data
• GPRS class 12: Uplink/Downlink up to 85.6Kbps
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD

Interfaces
• Analog audio interface
• UART
• USB
• (U)SIM card(1.8V/3V )
• USB interface
• Serial interface
• SD
• RTC GNSS backup
• ADC
• I2C
• GPIO
• Antenna: GSM/GNSS/BT*

Certifications
• RoHSREACHCCCCTASRRCMobileUnicomRCMCE(RED)GCFBQB(Bluetooth)TIMDeutsche Telekom

Specifications for Voice
• Speech Codec Modes
- AMR/HR/FR/EFR
• Echo Arithmetic
- AEC/EES
Ürün Filtreleri
FREKANS:2G Module ( GSM / GPRS ), GPS / GNSS Module
Barkod:8690000021505
Tedarikçi Ürün Kodu:SIM868E /S2-106RB-Z1Q66-Z1Q5Z
