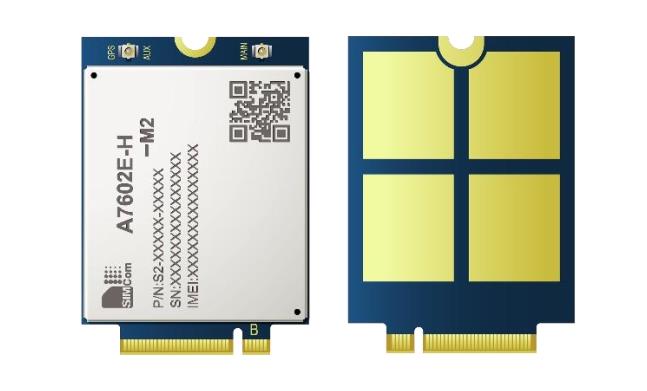

A7602E-H, M.2 LTE MODULE
1.464,31
TL
+
KDV
Stok Durumu:
Yok
General Features A7602E-H-M2 is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate. |
| Frequency |
| Bands |
| LTE-TDD B38/B40/B41 |
| LTE-FDD B1/B3/B5/B7/B8/B20/B28 |
| UMTS/HSPA+ B1/B5/B8 |
| GSM/GPRS/EDGE 900/1800 MHz |
| Supply Voltage 3.135V ~ 4.4V, Typ: 3.3V |
| Control Via AT Commands |
| Operation |
| temperature -20℃ ~ +70℃ |
| Dimensions 30.0*42.0*2.3mm |
| Weight 6.1± 0.2g |
| Data Transfer |
| LTE Cat 4 |
| Uplink up to 50Mbps Downlink up to150Mbps |
| HSPA+ |
| Uplink up to 5.76Mbps Downlink up to 21.6 Mbps |
| UMTS Uplink/Downlink up to 384Kbps |
| EDGE Uplink/Downlink up to 236.8Kbps |
| GPRS Uplink/Downlink up to 85.6Kbps |
| Other Features |
| USB Driver for Microsoft Windows 7/8/10 USB Driver for Linux /Android |
| RIL supporting for Android 5.0/6.0/7.0/8.0/9.0/10.0/11.0/12.0 |
| Firmware update via USB/FOTA |
| TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/ HTTPS/DNS |
| RNDIS/PPP/ECM/MBIM |
| SMS SSL |
| Interfaces |
| USB2.0 UART |
| (U)SIM card(1.8V/3V ) |
| PCM WoWWAN W_DISABLE I2C |
| GPIO |
| Antenna: Primary/Diversity/GNSS* |
| Certifications |
| CE# RoHS#/REACH# |
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000032433 |
| Tedarikçi Ürün Kodu | : | A7602E-H / S2-10CCD-Z3214 |
