A7672E is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
A7672E adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.
A7672E supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672E also supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.
Product Advantages
- Compact size with abundant interfaces
- Supports BLE and GNSS functions*
- Abundant software functions: FOTA, LBS, SSL
- Form factor is compatible with the SIM7000/SIM7070 series
A7672E Specification Table
| Category | Specification |
|---|
| Product | A7672E |
| Form Factor | LCC + LGA |

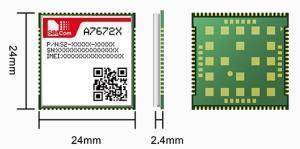

| Dimensions (mm) | 24.0 × 24.0 × 2.4 |
| Operating Temperature | -40℃ ~ +85℃ |
📡 Frequency Bands
| Technology | Bands |
|---|
| LTE-FDD | B1 / B3 / B5# / B7 / B8 / B20 / B28# |
| LTE-TDD | Not Supported (NA) |
| GSM | GSM/GPRS/EDGE 900 / 1800 MHz |
⚡ Electrical Features
| Parameter | Value |
|---|
| Supply Voltage (V) | 3.4 ~ 4.2 |
| Power Consumption (mA) | 1.5 @ LTE |
🔄 Data Transfer Rates
| Network | Download | Upload |
|---|
| LTE | 10 Mbps | 5 Mbps |
| EDGE | 236.8 Kbps | 236.8 Kbps |
| GPRS | 85.6 Kbps | 85.6 Kbps |
🧠 Software Features
| Feature | Support |
|---|
| Protocols | TCP/IP, IPv4/IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS, MQTT |
| TLS | ✔ |
| Jamming Detection | ✔ |
| TTS (Text-to-Speech) | ✔ |
| File System | ✔ |
| WIFISCAN | ✔ |
| BLE 5.0 | ✔ |
| FOTA | ✔ |
| Android RIL | Android 5.0/6.0/7.0/8.0/9.0 |
| USB Driver | Windows 7/8/10, Linux, Android |
| WWAN (RNDIS) | ✔ |
| ECM | ✔ |
| Embedded AT | ✔ |
| Firmware Upgrade | USB / FOTA |
🔌 Interfaces
| Interface | Support |
|---|
| SIM Card | 1.8V / 3.0V |
| UART | ✔ |
| USB | ✔ |
| ADC | ✔ |
| Analog Audio | ✔ |
| PCM | ✔ |
| GPIO | ✔ |
| I2C | ✔ |
| GNSS | ✔ |
| LCD | ✔ |
| Camera | ✔ |
🏅 Certification
| Certifications |
|---|
| RoHS, REACH, CE-RED, RCM, UKCA*, NCC, GCF, Deutsche Telekom, BT |
