A7683E LTE CAT1 MODULE LGA - 1
SIMCOM

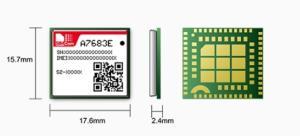

A7683E LTE CAT1 MODULE LGA

Ürün Kodu : A7683E S2-10DM3-Z33DQ
Yorumlar
Paylaş:
Fiyat Alarmı
605,92 TL + KDV


A7683E is the LTE Cat 1bis module that supports wireless communication modes of LTE-FDD. It  supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

A7683E adopts LGA form factor and is compatible with SIM800C, SIM868series (GSM/GPRS modules),SIM7080G(LPWA) and A7682E(CAT1), which enables smooth migration from 2G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

A7683E supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with the SIM800 series modules.  Meanwhile A7683E integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, industrial routers, and remote diagnostics etc.



- LGA form factor with abundant interfaces

- Suitable for LTE networks

- Abundant software functions: FOTA, LBS, SSL

- Compatible with the SIM800C,SIM868,SIM7080G and A7682E series modules





Product Details

General Features

Frequency Bands: LTE-FDD B1/B3/B5/B7/B8/B20/B28

Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V

Control Via AT Commands

Operation temperature: -40℃ ~ +85℃

Dimensions: 15.7*17.6*2.4mm

Weight: 2.2g±0.1



Data Transfer

LTE Cat 1:

Uplink up to 5Mbps

Downlink up to10Mbps


Other Features

USB Driver for Microsoft Windows 7/8/10

USB Driver for Linux /Android

RIL supporting for Android 5.0/6.0/7.0/8.0/9.0

Firmware update via USB/FOTA

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS

RNDIS/PPP/ECM

VoLTE/SMS

SSL



Certifications

CE#/UKCA#/RoHS#/REACH#

Interfaces

USB2.0

UART

(U)SIM card(1.8V/3V )

Analog audio

ADC

I2C

GPIO

Antenna: Primary

Ürün Filtreleri
Barkod:8690000032679
Tedarikçi Ürün Kodu:A7683E S2-10DM3-Z33DQ
